Iscar
6405098

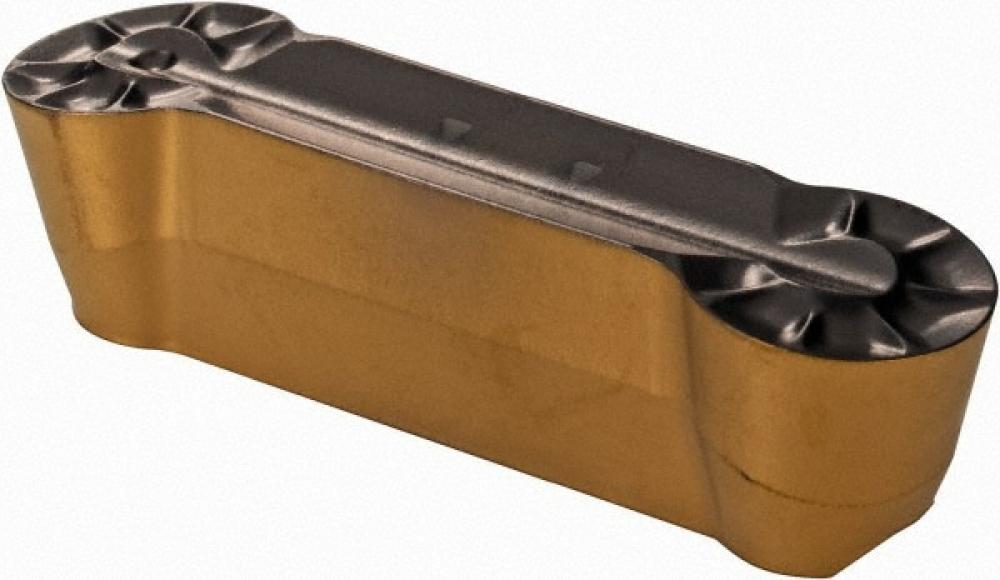

GDMY 840 IC830
Specifications
| Long Description | Utility, double-ended inserts. Used for heavy duty turning, profiling and grooving. Maximum machining depth is 1.0". |
|---|---|
| Short Description | ISCAR GDMY-840 IC830 CARB GRV INSERT W.315 W/FNR |
| Insert Width | 0.3150 |
| Min. Turning Feed | 0.0126 |
| Insert Designation | GDMY |
| APP1Name | Ext. Grooving |
| FamilyName | GDMY (full radius) |
| Max. Turning Feed | 0.0264 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel |
| Coating | AlTiN+TiN |
| Weight (OZ) | 0.66314 |
| Width (Inch) | 2.24 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.1570 |
