Iscar
6405120

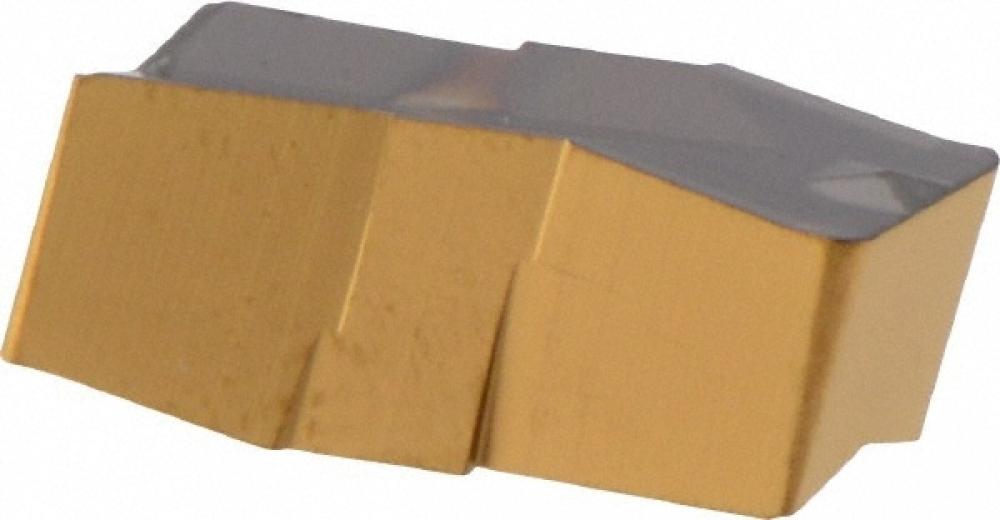

GIP 4.78E-0.55 IC808
Specifications
| Long Description | Precision, double-ended inserts for turning and grooving. P-type chipformer, medium-to-high feeds. |
|---|---|
| Short Description | ISCAR GIP-4.78E-0.55 IC808 CARB GRV INSERT W.188 R.022 |
| Insert Width | 0.1880 |
| Min. Turning Feed | 0.0083 |
| Insert Designation | GIP |
| APP1Name | T Slotting |
| FamilyName | GIP-E |
| Max. Turning Feed | 0.0122 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN+AlTiN+TiN |
| External/Internal | External |
| Weight (OZ) | 0.2328 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0220 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
