Iscar
6405227

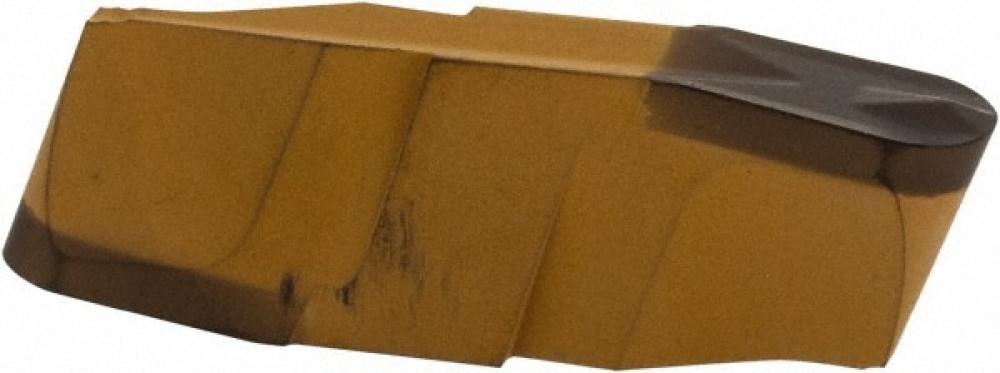

GIP 3.00-1.50UN IC8250
Specifications
| Long Description | Precision inserts for external undercutting and recessing. Double-ended, P-type chipformer, large clearance angle for small diameters, not recommended for turning. |
|---|---|
| Short Description | GIP-3.00-1.50UN-IC8250 ISCAR CG GROOVE INSERTS |
| Insert Width | 0.1180 |
| Insert Designation | GIP |
| APP1Name | Ext. Undercut |
| FamilyName | GIP-UN |
| COO | Israel |
| Work Material | Stainless Steel+Steel |
| Coating | TiCN+Al2O3+TiN |
| External/Internal | External |
| Weight (OZ) | 0.13757 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.0590 |
