Iscar
6405338

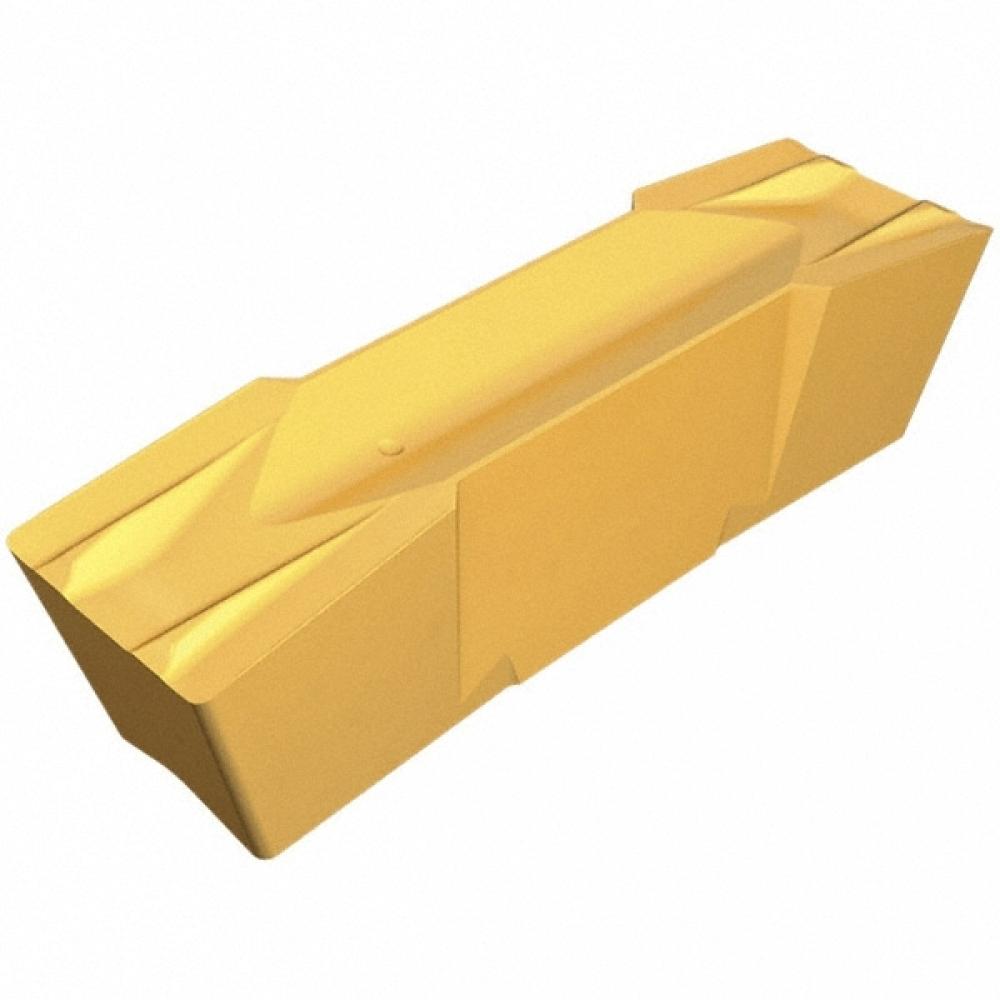

GIF 8.00-0.80 IC806
Specifications
| Long Description | CUT-GRIP precision ground, double-ended inserts for external, internal and face grooving at low to-medium feeds. |
|---|---|
| Short Description | GIF-8.00-0.80-IC806 ISCAR CG GROOVE INSERTS |
| Insert Width | 0.3150 |
| Insert Designation | GIF |
| APP1Name | Ext. Grooving |
| FamilyName | GIF (long pocket) |
| COO | Israel |
| Work Material | Hi Temp |
| Coating | AlTiN "SUMO TEC" |
| Weight (OZ) | 0.81834 |
| Width (Inch) | 2.24 |
| Corner Radius | 0.0310 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
