Iscar
6405344

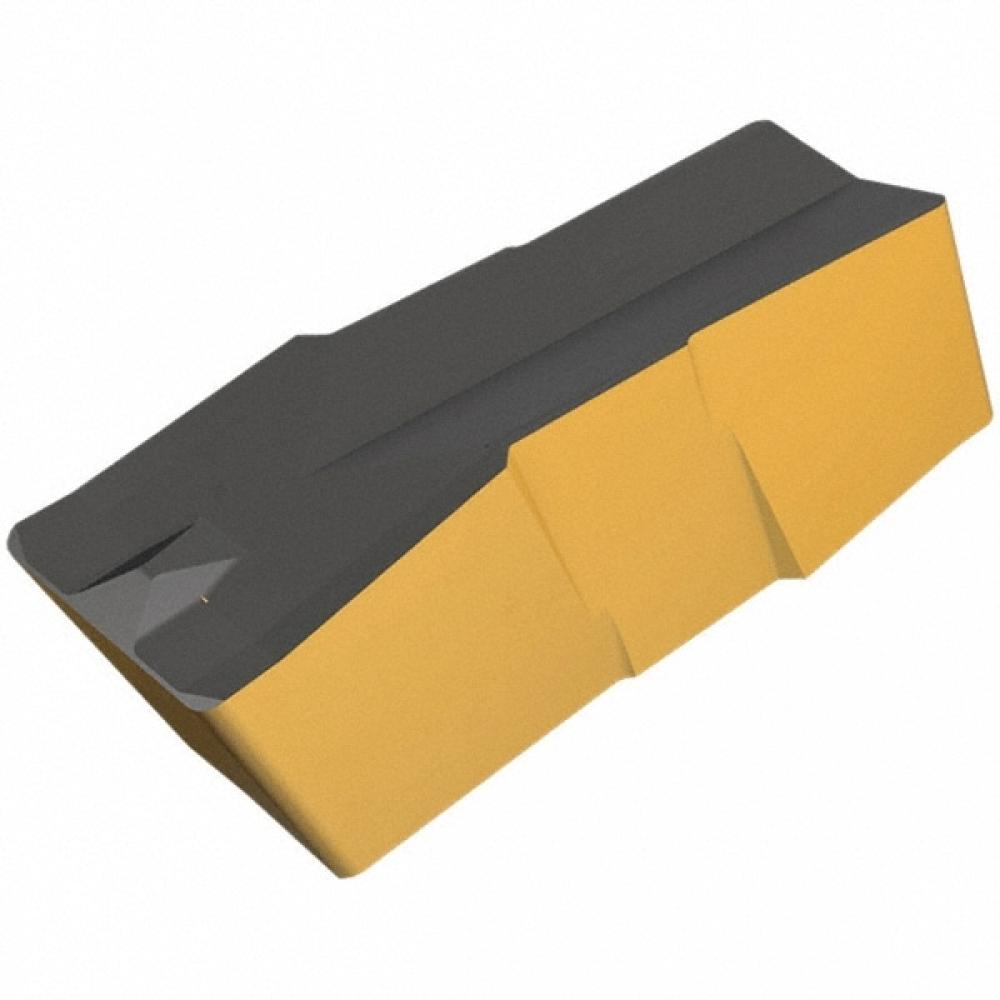

GIP 3.00E-0.40 IC806
Specifications
| Long Description | Precision, double-ended inserts for turning and grooving. P-type chipformer, medium-to-high feeds. |
|---|---|
| Short Description | ISCAR GIP-3.00E-0.40 IC806 CARB GRV INSERT W.118 R.016 |
| Insert Width | 0.1180 |
| Min. Turning Feed | 0.0067 |
| Insert Designation | GIP |
| APP1Name | T Slotting |
| FamilyName | GIP-E |
| Max. Turning Feed | 0.0087 |
| COO | Israel |
| Work Material | Hi Temp |
| Coating | AlTiN "SUMO TEC" |
| External/Internal | External |
| Weight (OZ) | 0.1552 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0160 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
