Iscar
6411103

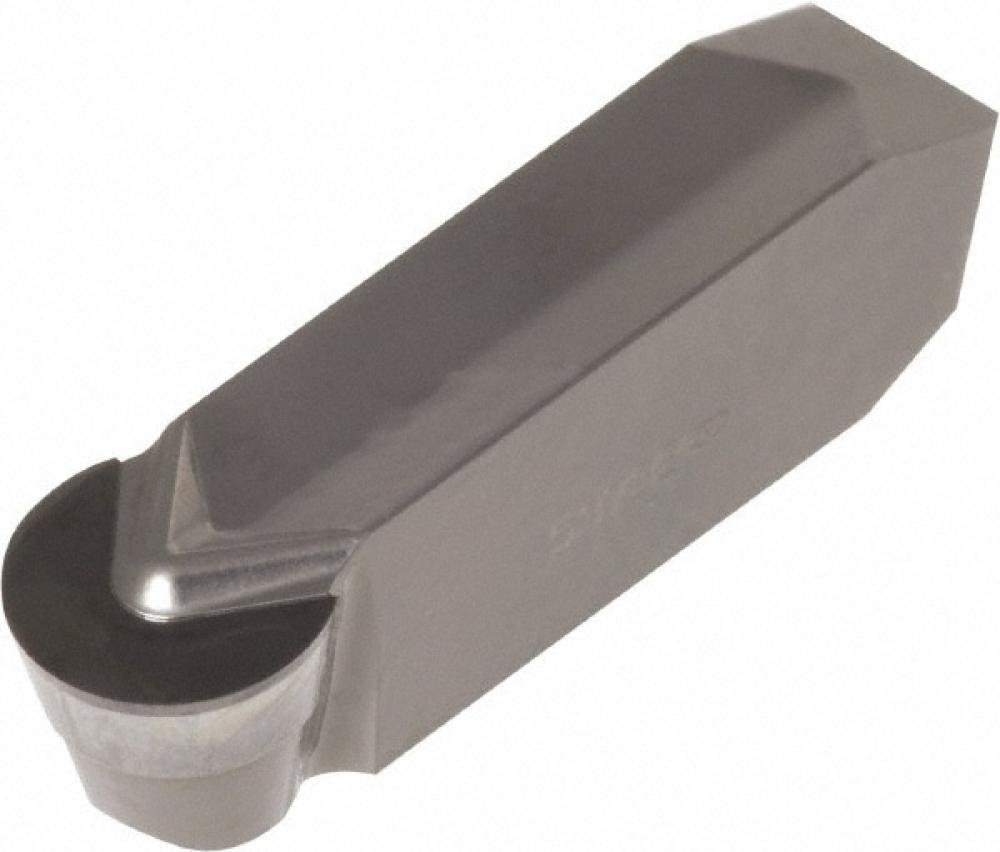

GIDA 80-40CB-D ID5
Specifications
| Long Description | Full radius, precision ground inserts for machining aluminum wheels. Double-ended and polished to avoid built-up edge. Used in medium-to-high feeds. |
|---|---|
| Short Description | GIDA-80-40-CB-1D5 ISCAR |
| Insert Width | 0.3150 |
| Min. Turning Feed | 0.0094 |
| Insert Designation | GIDA |
| APP1Name | Ext. Grooving |
| FamilyName | GIPA/GIDA 8 (full radius) |
| Max. Turning Feed | 0.0264 |
| COO | Switzerland |
| Work Material | Aluminum and Non Ferrous |
| Weight (OZ) | 0.77601 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | PCD |
| Measurement Type | Inch |
| Radius | 0.1570 |
