Iscar
6450027
TGMF 420 IC20
Specifications

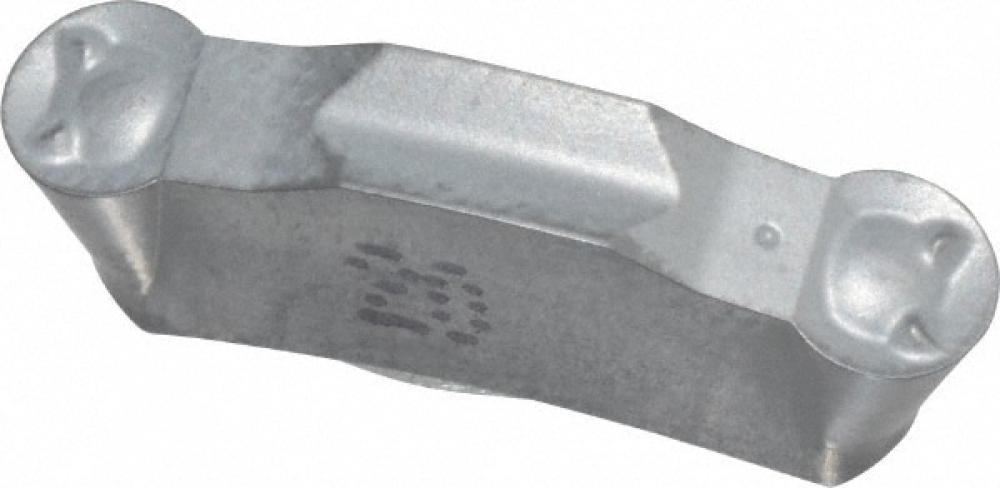

| Long Description | Utility double-ended inserts for external and internal grooving and profiling at low-to-medium feeds. Full radius inserts which can cut arcs to 250°. |
|---|---|
| Short Description | ISCAR TGMF-420 IC20 CARB GRV INSERT W.157 W/FULL RADIUS |
| Insert Width | 0.1570 |
| Min. Turning Feed | 0.0079 |
| Insert Designation | TGMF |
| APP1Name | Ext. Grooving |
| FamilyName | TGMF (full radius) |
| Max. Turning Feed | 0.0134 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Hardened Metals+Cast Iron+Aluminum and Non Ferrous |
| Coating | Uncoated |
| Weight (OZ) | 0.19048 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.0790 |
