Iscar
6450099

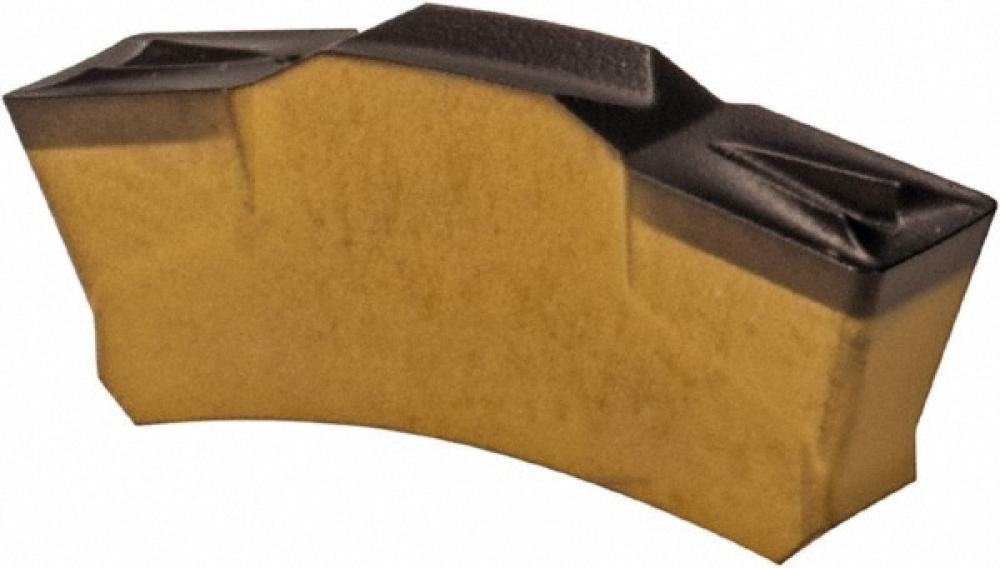

TGMF 404 IC8250
Specifications
| Long Description | Utility double-ended inserts for external and internal grooving and turning. |
|---|---|
| Short Description | ISCAR TGMF-404 IC8250 CARB GRV INSERT W.157 R.016 |
| Insert Width | 0.1570 |
| Min. Turning Feed | 0.0071 |
| Insert Designation | TGMF |
| APP1Name | Ext. Grooving |
| FamilyName | TGMF/P |
| Max. Turning Feed | 0.0094 |
| COO | Israel |
| Work Material | Stainless Steel+Steel |
| Coating | TiCN+Al2O3+TiN |
| Weight (OZ) | 0.18695 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0160 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
