Iscar
6450101
TGMF 302 IC8250
Specifications

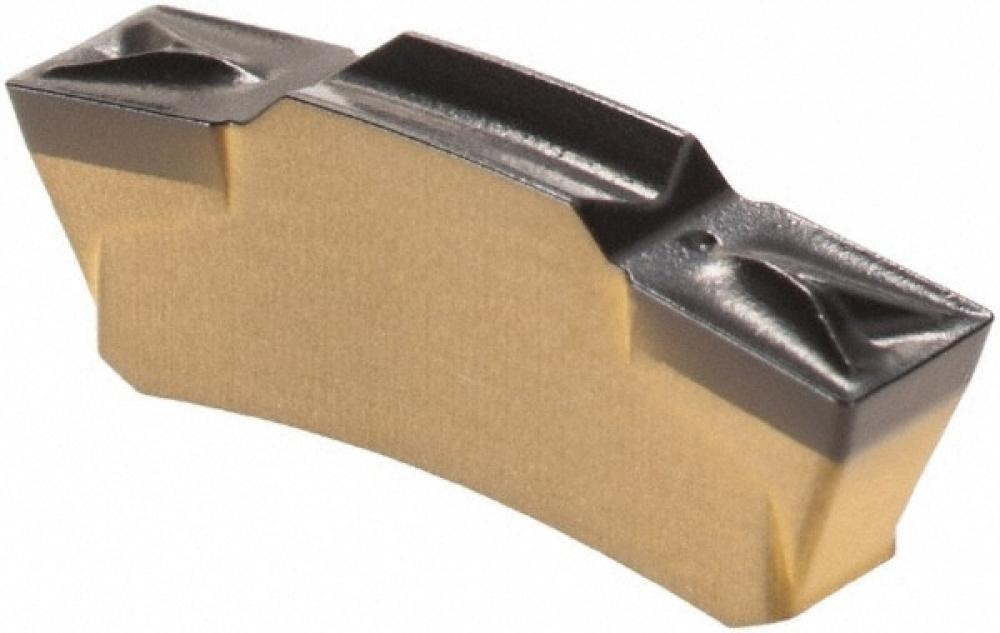

| Long Description | Utility double-ended inserts for external and internal grooving and turning. |
|---|---|
| Short Description | ISCAR TGMF-302 IC8250 CARB GRV INSERT W.118 R.008 |
| Insert Width | 0.1180 |
| Min. Turning Feed | 0.0055 |
| Insert Designation | TGMF |
| APP1Name | Ext. Grooving |
| FamilyName | TGMF/P |
| Max. Turning Feed | 0.0071 |
| COO | Israel |
| Work Material | Stainless Steel+Steel |
| Coating | TiCN+Al2O3+TiN |
| Weight (OZ) | 0.10582 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0080 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
