Iscar
6450118

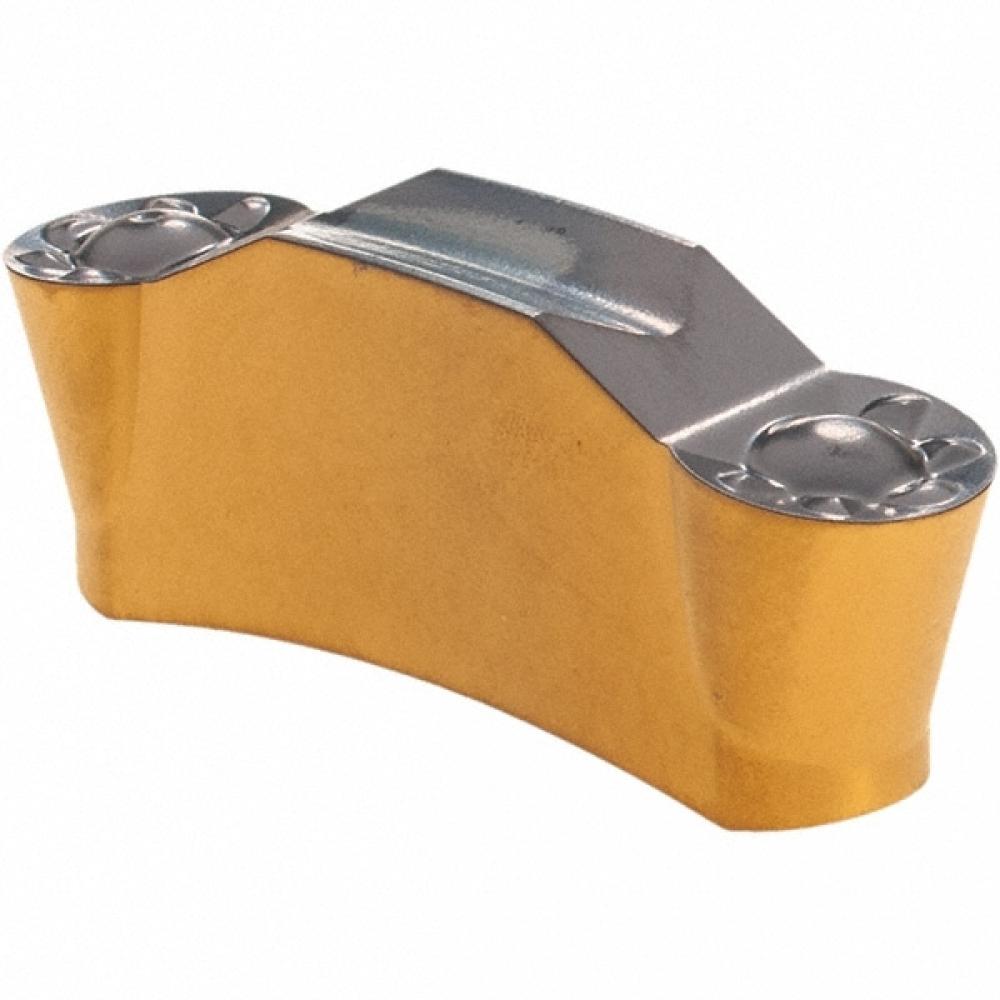

TGMF 630 IC808
Specifications
| Long Description | Utility double-ended inserts for external and internal grooving and profiling at low-to-medium feeds. Full radius inserts which can cut arcs to 250°. |
|---|---|
| Short Description | ISCAR TGMF-630 IC808 CARB GRV/TURN INSERT W.236 W/FNR |
| Insert Width | 0.2360 |
| Min. Turning Feed | 0.0094 |
| Insert Designation | TGMF |
| APP1Name | Ext. Grooving |
| FamilyName | TGMF (full radius) |
| Max. Turning Feed | 0.0197 |
| COO | Israel |
| Work Material | Stainless Steel+Hi Temp+Steel+Hardened Metals+Cast Iron |
| Coating | TiAlN+AlTiN+TiN |
| Weight (OZ) | 0.43386 |
| Width (Inch) | 2.2 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Radius | 0.1180 |
