Iscar
6492312

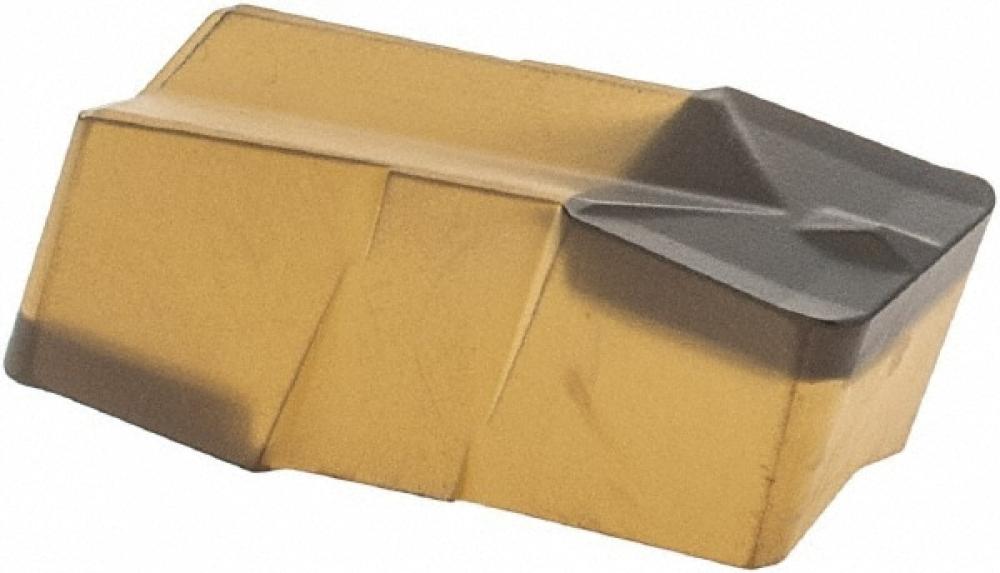

GIP 6.00E-0.80 IC8250
Specifications
| Long Description | Precision, double-ended inserts for turning and grooving. P-type chipformer, medium-to-high feeds. |
|---|---|
| Short Description | GIP-6.00E-0.80 IC8250 ISCAR GROOVING INSERT |
| Insert Width | 0.2360 |
| Min. Turning Feed | 0.0102 |
| Insert Designation | GIP |
| APP1Name | T Slotting |
| FamilyName | GIP-E |
| Max. Turning Feed | 0.0181 |
| COO | Israel |
| Work Material | Stainless Steel+Steel |
| Coating | TiCN+Al2O3+TiN |
| External/Internal | External |
| Weight (OZ) | 0.29277 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0310 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
