Iscar
6492492

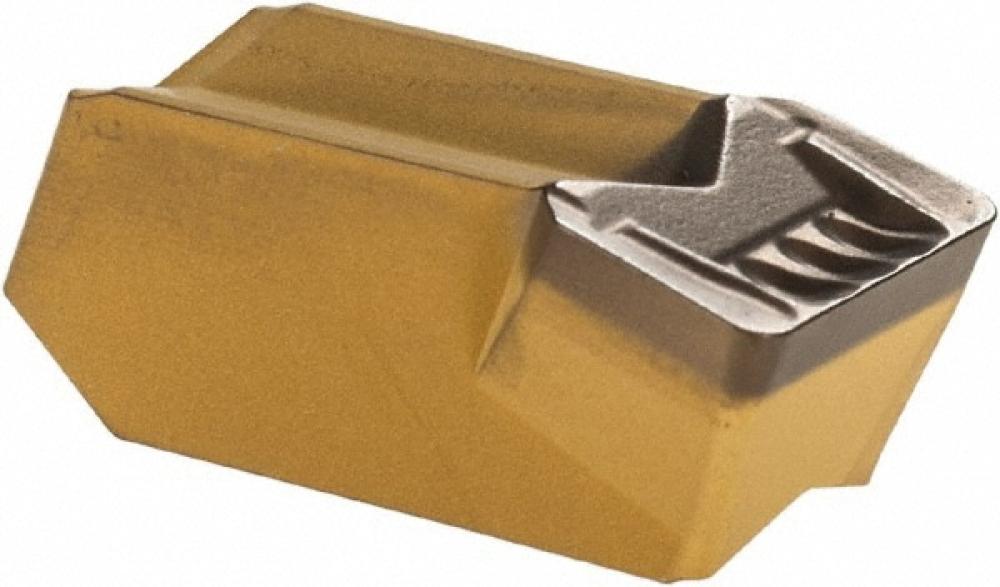

GIMY 808 IC8250
Specifications
| Long Description | Utility single-ended inserts with F/Y-type chipformers, used for deep grooving and turning at low-to-medium feeds. |
|---|---|
| Short Description | ISCAR GIMY-808 IC8250 CARB GRV INSERT W.315 R.031 |
| Insert Width | 0.3150 |
| Min. Turning Feed | 0.0126 |
| Insert Designation | GIMY |
| APP1Name | T Slotting |
| FamilyName | GIMY |
| Max. Turning Feed | 0.0220 |
| COO | Israel |
| Work Material | Stainless Steel+Steel |
| Coating | TiCN+Al2O3+TiN |
| External/Internal | External |
| Weight (OZ) | 0.34215 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0310 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
