Iscar
6496822

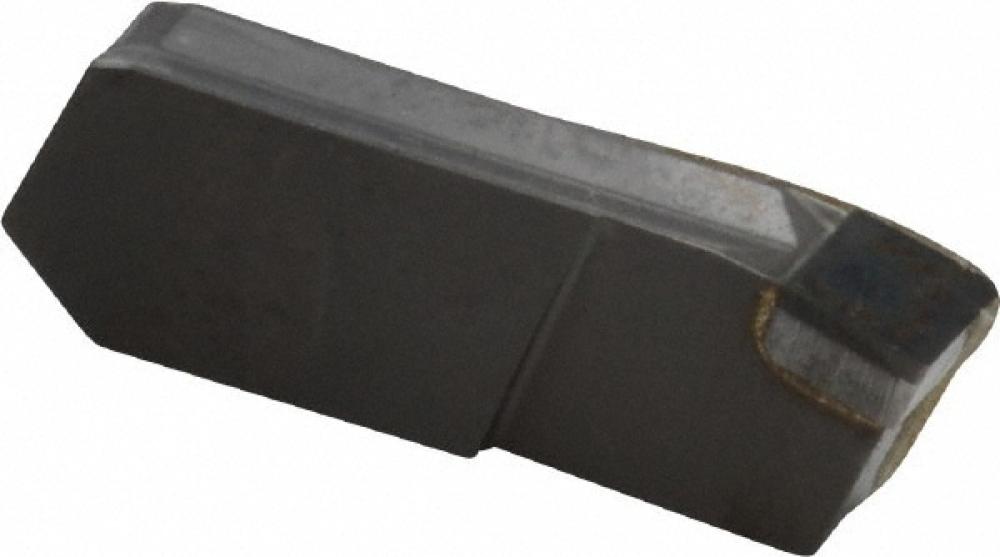

GIPA 3.00-0.20-D ID5
Specifications
| Long Description | Precision ground double-ended inserts, polished to avoid built-up edge, used for machining of aluminum at medium-to-high feeds. |
|---|---|
| Short Description | GIPA-3.00-0.20 ID5 ISCAR CUT-GRIP |
| Insert Width | 0.1180 |
| Min. Turning Feed | 0.0047 |
| Insert Designation | GIPA |
| APP1Name | Ext. Grooving |
| FamilyName | GIPA (W=.118-.236) |
| Max. Turning Feed | 0.0098 |
| COO | Switzerland |
| Work Material | Aluminum and Non Ferrous |
| External/Internal | External |
| Weight (OZ) | 0.28219 |
| Width (Inch) | 1.57 |
| Corner Radius | 0.0080 |
| Cutting Edge Material | PCD |
| Measurement Type | Inch |
