Iscar
6723735

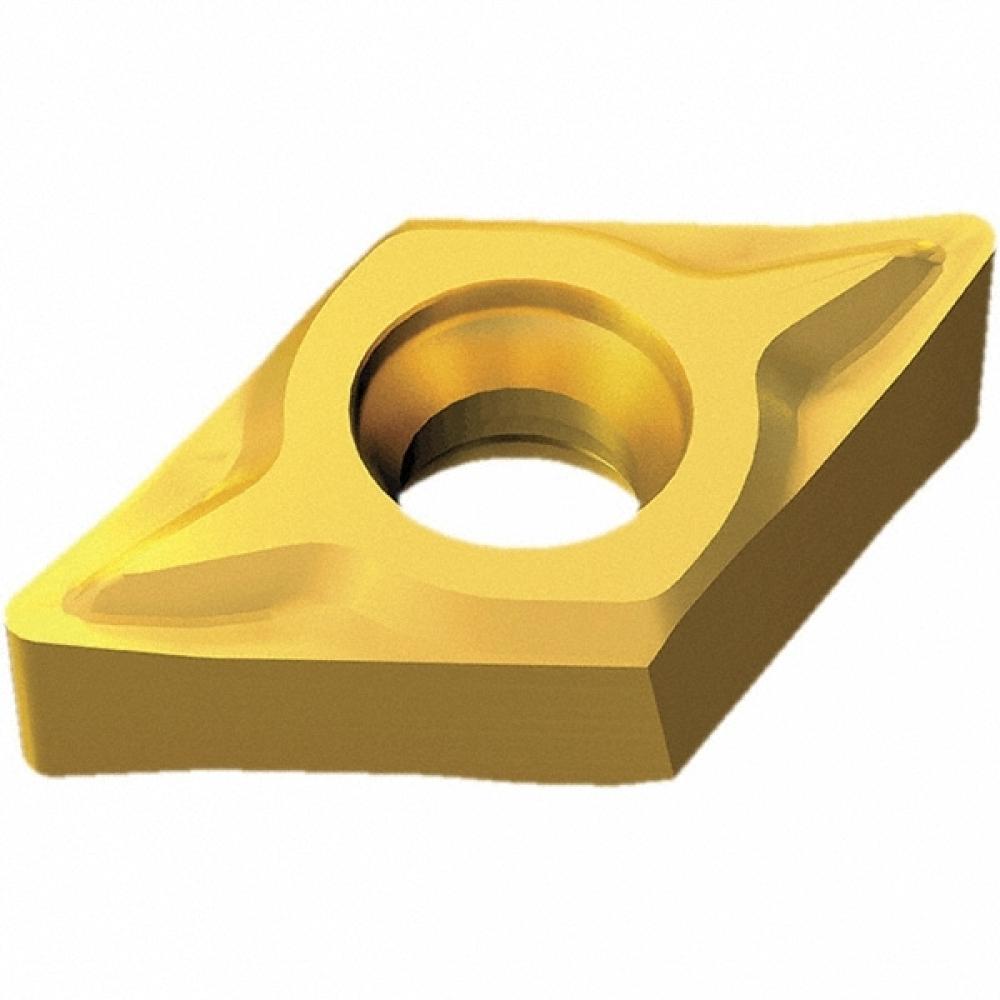

DNGP 220.5L-F2P IC530N
Specifications
| Coating/Finish | TiCN+TiN |
|---|---|
| Material | Cermet |
| Size | 0.25 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.01 |
| Style | DNGP |
| Thickness (Inch) | 0.13 |
| Short Description | DNGP-220.5L-F2P-IC530N ISCAR |
| Long Description | Double-sided inserts, for finishing conditions on alloyed steel. Low cutting forces due to sharp and positive rake. Negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.3 |
| Minimum Depth of Cut (Decimal) | 0.01 |
| Maximum Depth of Cut (Decimal) | 0.08 |
| Minimum Feed (Decimal) | 0.0031 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel |
| Clearance Angle | Negative |
| Machining Application | Finishing-Semi Roughing |
| Country of Origin | Japan |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0080 |
| Family Short Description | Double-Sided 55° Rhombic Inserts for Semi-Finishing and Finishing Applications on Alloyed Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.07 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiCN+TiN |
| APP1Name | Int. 55° Diamod 93° Back Appro |
| FamilyName | DNGP-F2P |
| Max. Depth Of Cut | 0.0790 |
| Insert Style | DNGP |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.1250 |
| Weight (OZ) | 0.07055 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Cermet |
| Measurement Type | Inch |
