Iscar
6804537

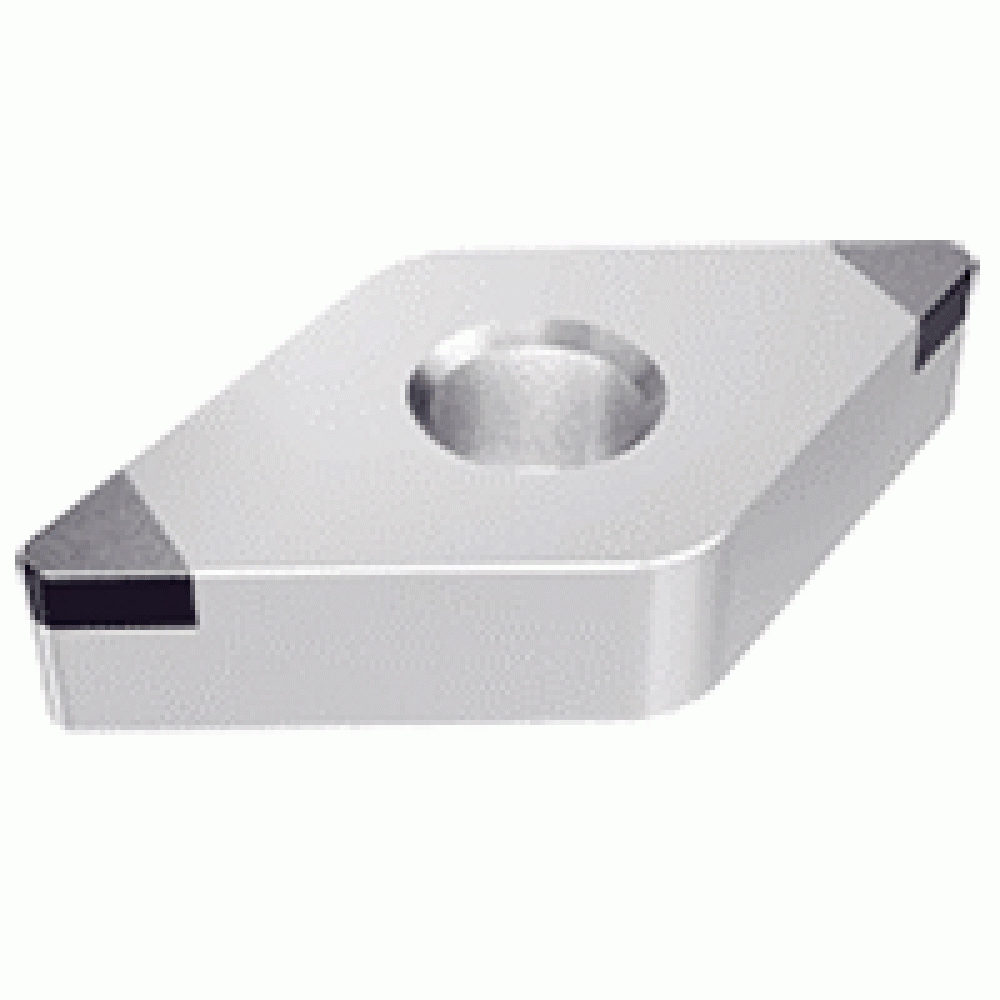

DNGA 433-M2 IB20HC
Specifications
| Coating/Finish | TiN |
|---|---|
| Material | PCBN |
| Size | 0.5 |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.05 |
| Style | DNGA |
| Thickness (Inch) | 0.19 |
| Short Description | DNGA-433-M2 ISCAR INSERT |
| Long Description | 55° rhombic inserts with 2 CBN tips for machining hardened steel, sintered metals and high temperature alloys |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.61 |
| Maximum Depth of Cut (Decimal) | 0.02 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Hardened Materials |
| Clearance Angle | Negative |
| Machining Application | Medium |
| Country of Origin | Japan |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0470 |
| Family Short Description | 55° Rhombic Inserts with 2 CBN Tips for Machining Hardened Steel, Sintered Metals and High Temperature Alloys |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.60 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiN |
| APP1Name | Ext. 55° Diamond 62.5° Approac |
| FamilyName | DNGA-2 (CBN) |
| Max. Depth Of Cut | 0.0200 |
| Insert Style | DNGA |
| Insert Shape | 55° Diamond |
| Insert Thickness | 0.1870 |
| Weight (OZ) | 0.59965 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | PCBN |
| Measurement Type | Inch |
