Iscar
6837460

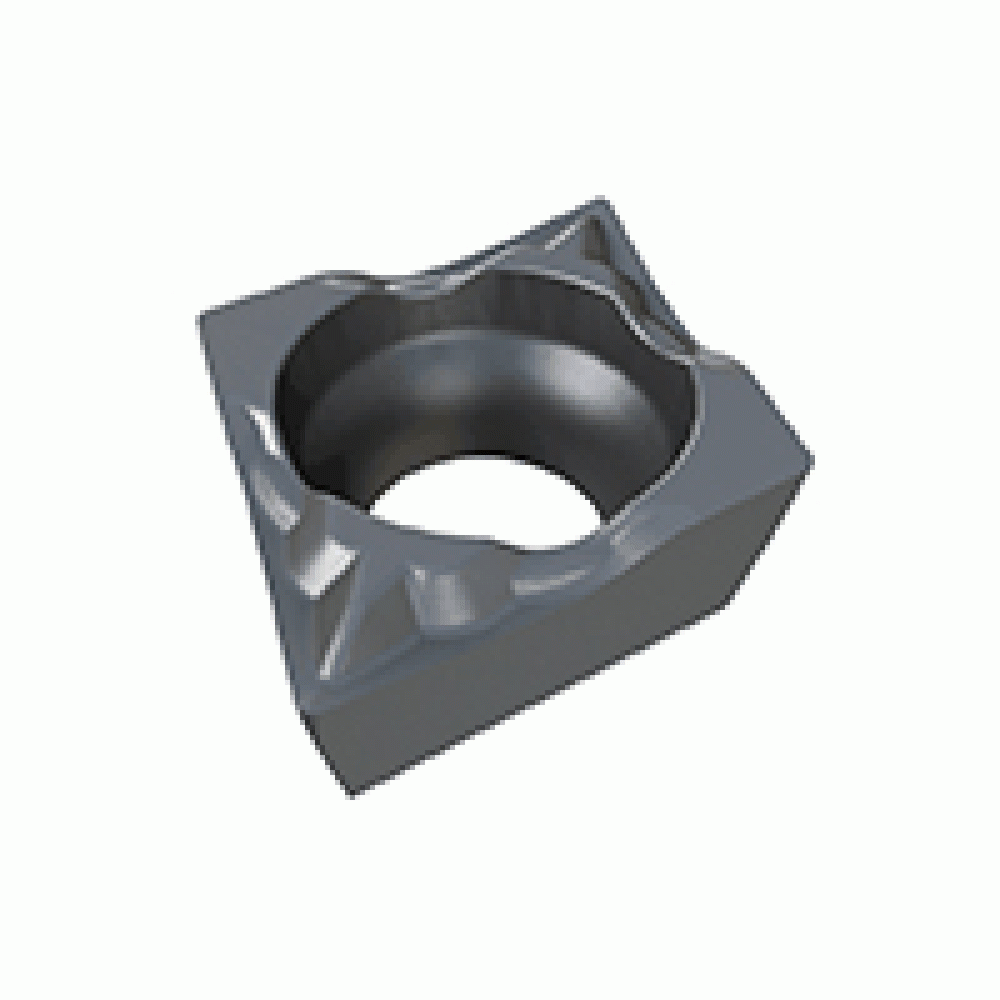

EPGT 03X104-F1P IC908
Specifications
| Coating/Finish | TiAlN |
|---|---|
| Material | Carbide |
| Size | 0.14 |
| Included Angle | 75 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | EPGT |
| Thickness (Inch) | 0.06 |
| Short Description | EPGT-03X104-F1P-IC908 ISCAR |
| Long Description | 75° rhombic 11° flank inserts for very low finish turning conditions of steel. Low cutting forces due to sharp ground cutting edge and a positive rake angle. |
| Unit Of Measure | Imperial |
| Shape | Diamond |
| Insert Edge Length (Decimal) | 0.15 |
| Maximum Depth of Cut (Decimal) | 0.02 |
| Minimum Feed (Decimal) | 0.002 |
| Maximum Feed (Decimal) | 0.01 |
| Work Material | Stainless Steel+Steel+Hi Temp+Hardened Materials+Cast Iron |
| Clearance Angle | 11 deg Positive |
| Machining Application | Semi Finishing-Semi Roughing |
| Country of Origin | Japan |
| Base Item Number | Turning Indexable Inserts |
| Corner Radius | 0.0160 |
| Family Short Description | 75° Rhombic Inserts with a Positive Flank for Very Low Finish Turning Conditions on Steel |
| Height | 0.39 Inch |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.05 OZ |
| Width | 1.57 Inch |
| Insert Coating | TiAlN |
| APP1Name | Int. 75° Diamond 100° Approach |
| FamilyName | EPGT-F1P |
| Max. Depth Of Cut | 0.0200 |
| Insert Style | EPGT |
| Insert Shape | 75° Diamond |
| Insert Thickness | 0.0550 |
| Weight (OZ) | 0.05291 |
| Width (Inch) | 1.57 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
