Jergens
49512

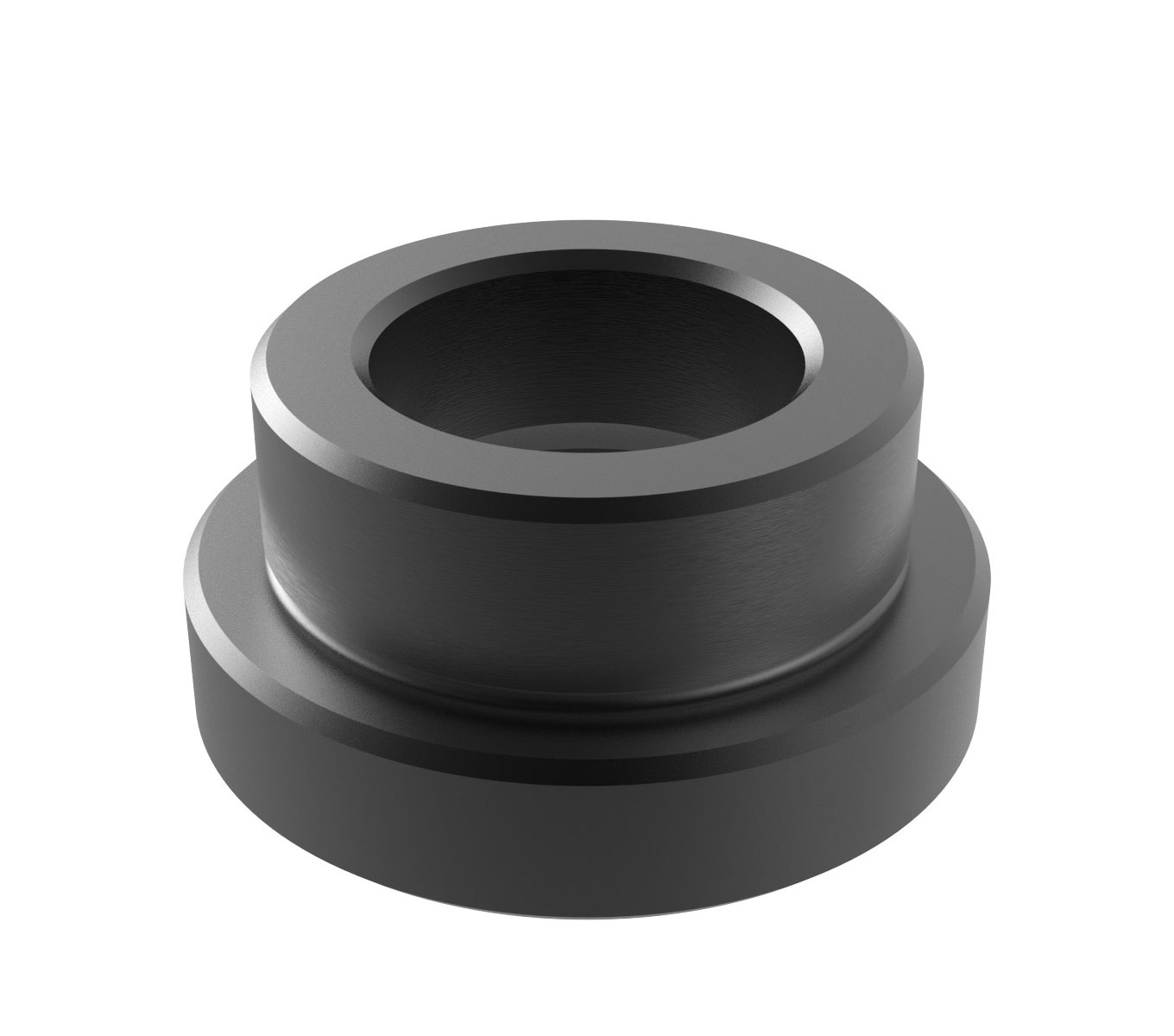

RECEIVER BUSHING, 25MM BACK MT
Specifications
| Long Description | Jergens Ball Lock® Back Mount Receiver Bushings are used in through hole applications (Light Press Fit). Specifications: - Material: 4340 Steel - Finish: Black Oxide - Heat Treat: 50-54 RC - Operating Temperature Range: -20°F to 400°F (-30°C to 200°C) Note(s): - Installed bushings should be approximately 0.012" (0.3mm) below subplate surface. - To alleviate the possibility of binding the shank in the bore, the maximum interference fit between bore and bushing O.D. should not exceed 0.0005" (0.013mm). |
|---|---|
| Shank Diameter | 25 mm |
| Material | 4340 Steel |
| Operating Temperature Range | -20°F to 400°F (-30°C to 200°C) |
| Mount Type | Back Mount |
| Series | Ball Lock® Back Mount Receiver Bushings |
| Bullet 1 | Ball Lock® |
| Finish | Black Oxide |
