Jergens
49603

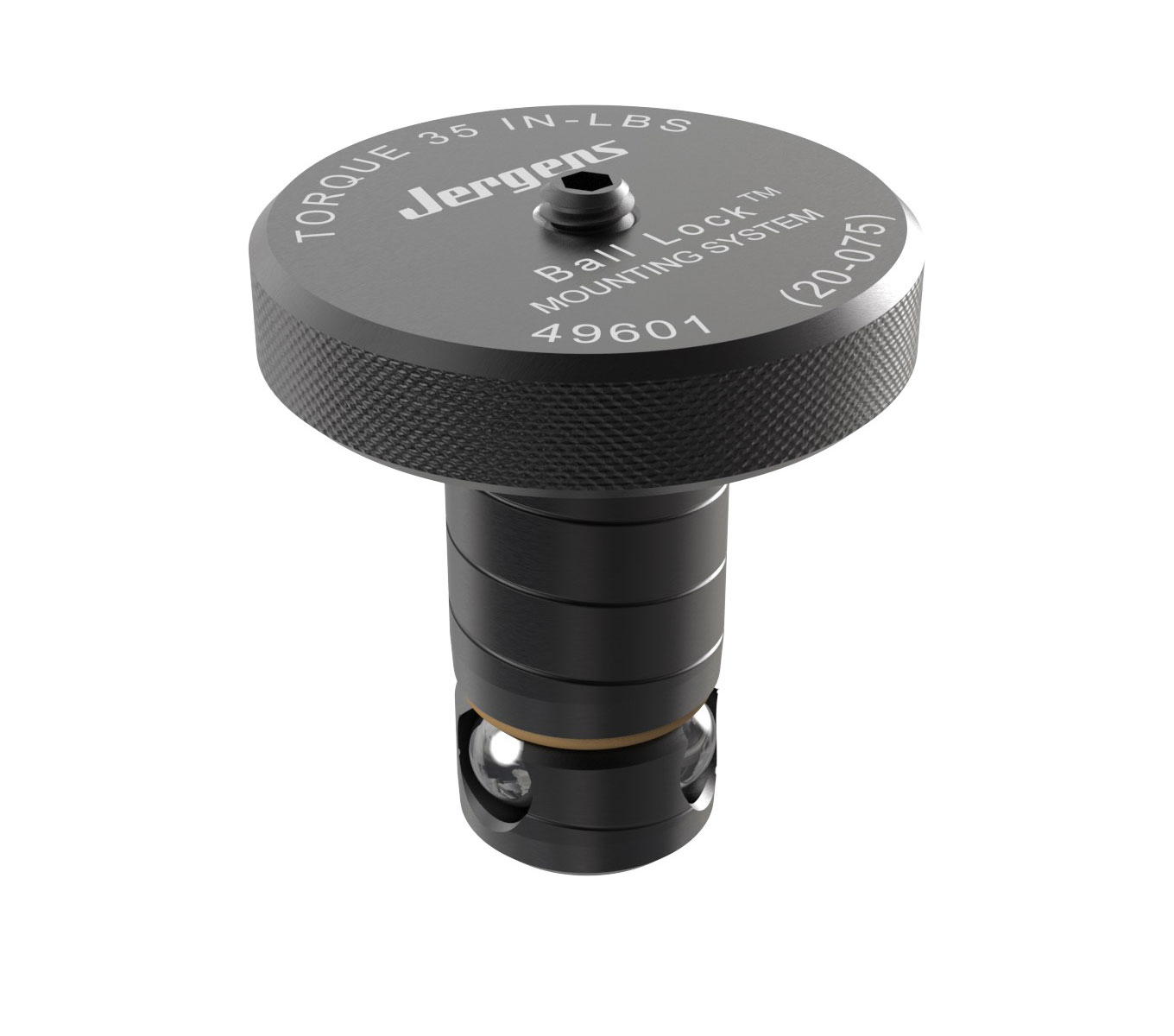

SHANK, STANDARD, 20MM X 1.50, BALL LOCK, BLS-20-150
Specifications
| Long Description | Any Ball Lock® application requires at least (2) sets of shanks, receiver bushings, and liners. The liners are placed into the fixture plate to insure extremely accurate positioning. If more than (2) shanks are required (to provide additional hold down force), omit the liner bushing so that these additional holes will not interfere with your primary locating holes. Specifications: - Material: 4340 Steel - Finish: Black Oxide - Heat Treat: Shanks: 40-45 RC - Operating Temperature Range: -20°F to 400°F (-30°C to 200°C) |
|---|---|
| Shank Diameter | 20 mm |
| Material | 4340 Steel |
| Shank Length | 2.28 in |
| Head Diameter | 1.75 in |
| Series | Ball Lock® Shanks |
| Bullet 1 | Black Oxide |
