Jergens
49732SS

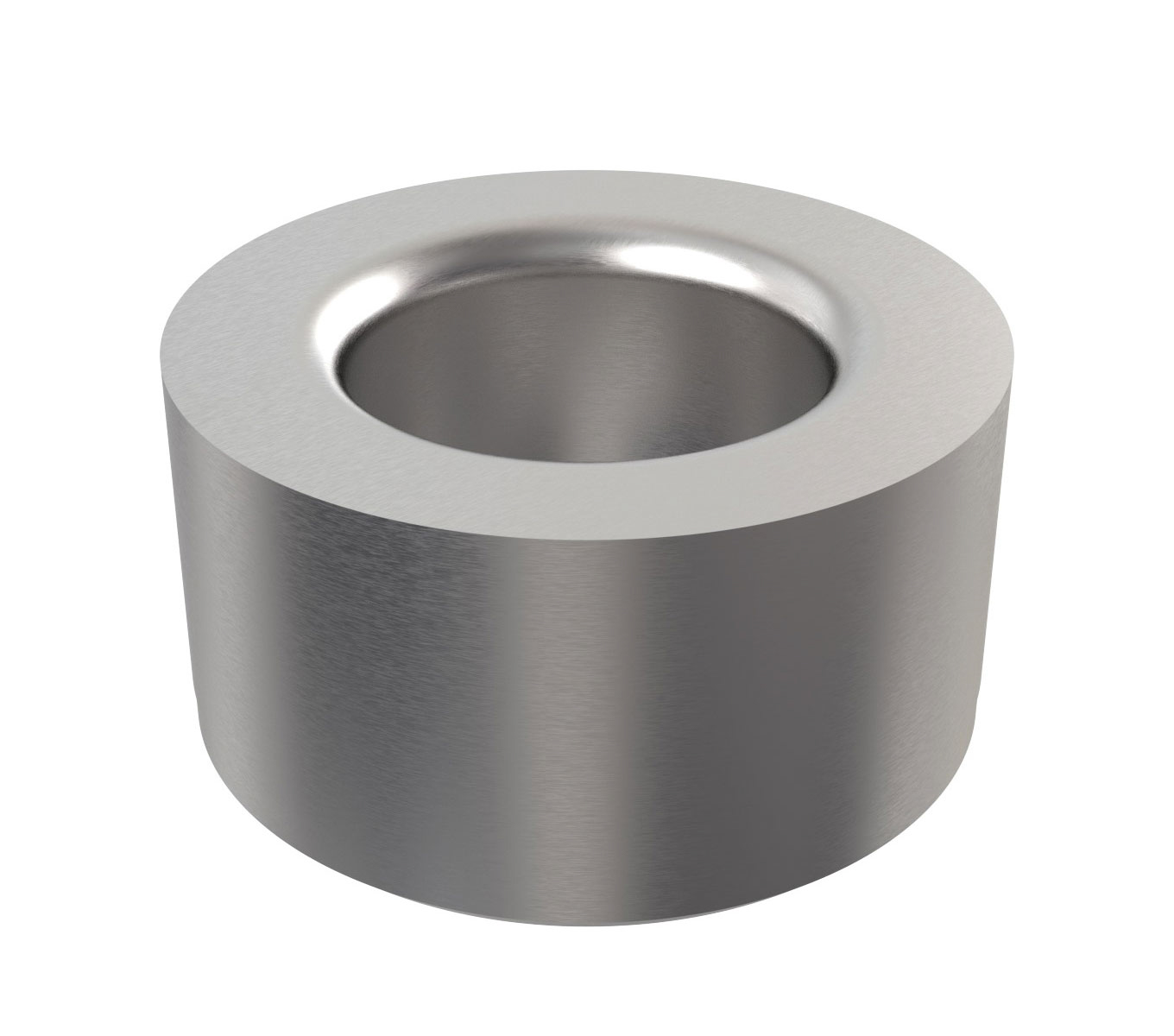

PRIMARY LINER, 35MM X 1.00, SS, BALL LOCK, SBLL-35-100
Specifications
| Long Description | Locating repeatability will determine if (1) primary and (1) secondary or (2) primary liners are needed. With (2) primary liners, repeatability of ±0.0005" (±0.003 mm) can be maintained if the (2) holes for receiver bushings are held to a centerline distance of ±0.0002" (±0.005 mm) tolerance. Specifications: - Material: 17-4 PH Stainless Steel - Heat Treat: 40-45 RC Note(s): On Installation of Press Fit Liners & Back Mount Style Receiver Bushings: To alleviate the possibility of binding the shank in the bore, the maximum interference fit between bore and bushing O.D. should not exceed 0.0005" (0.013mm). |
|---|---|
| Short Description | PRIMARY LINER, 35MM X 1.00, SS, BALL LOCK, SBLL-35-100 |
| Shank Diameter | 35 mm |
| Material | 17-4 PH Stainless Steel |
| Outside Diameter | 1.7523 in |
| Outside Diameter Tolerance | +.0000 -0.0004 in |
| Series | Stainless Steel Ball Lock® Liners |
| Liner Type | Primary |
