Jergens
49894SS

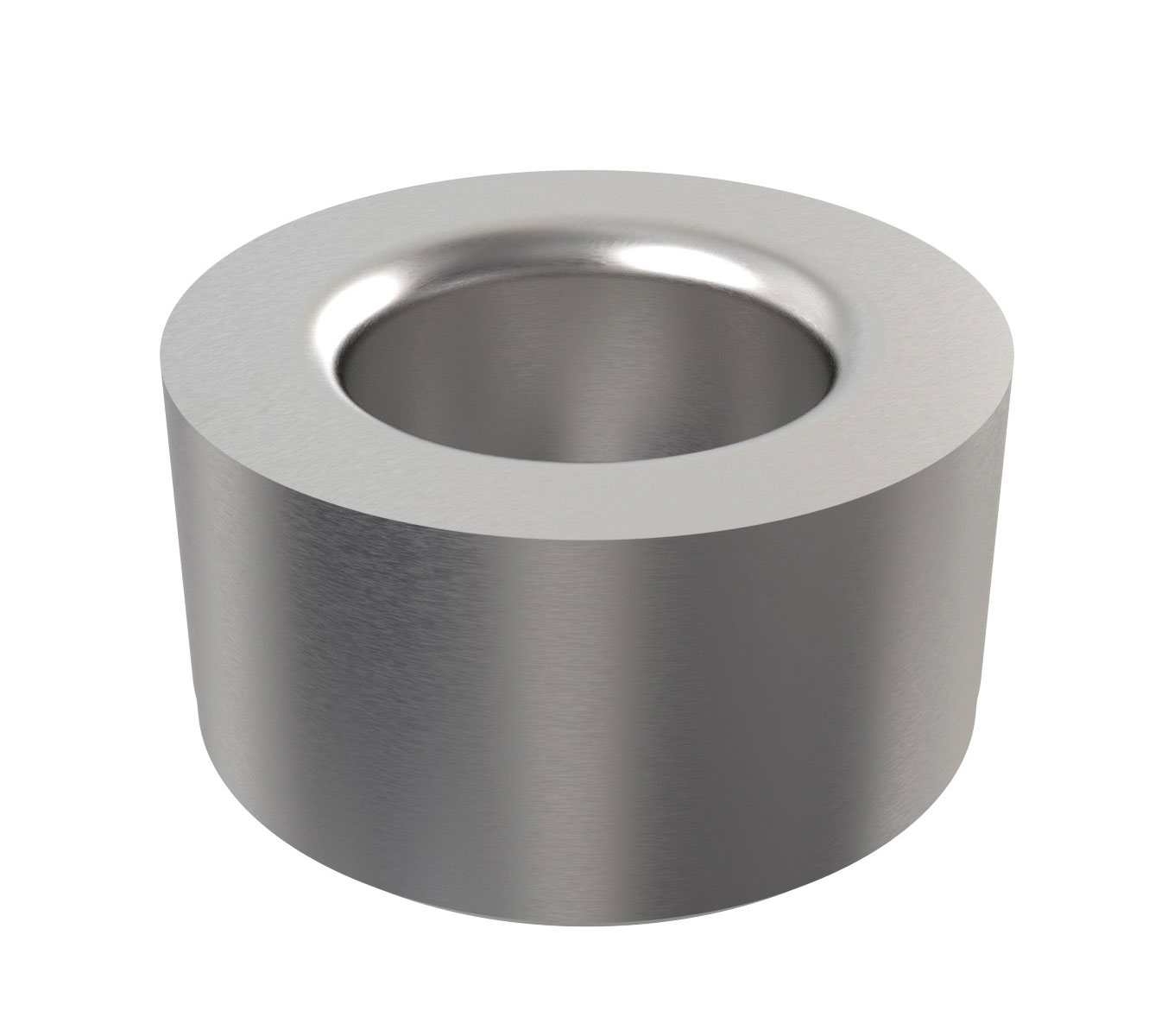

SECONDARY LINER, 50MM X 50MM, SS, BALL LOCK, SMBLT-50-50
Specifications
| Long Description | Locating repeatability will determine if (1) primary and (1) secondary or (2) primary liners are needed. With (2) primary liners, repeatability of ±0.0005" (±0.003 mm) can be maintained if the (2) holes for receiver bushings are held to a centerline distance of ±0.0002" (±0.005 mm) tolerance. Specifications: - Material: 17-4 PH Stainless Steel - Heat Treat: 40-45 RC Note(s): On Installation of Press Fit Liners & Back Mount Style Receiver Bushings: To alleviate the possibility of binding the shank in the bore, the maximum interference fit between bore and bushing O.D. should not exceed 0.0005" (0.013mm). |
|---|---|
| Short Description | SECONDARY LINER, 50MM X 50MM, SS, BALL LOCK, SMBLT-50-50 |
| Shank Diameter | 50 mm |
| Material | 17-4 PH Stainless Steel |
| Outside Diameter | 63.546 mm |
| Outside Diameter Tolerance | +0.00, -0.01 mm |
| Series | Stainless Steel Ball Lock® Liners |
| Liner Type | Secondary |
