Jergens
5SP310

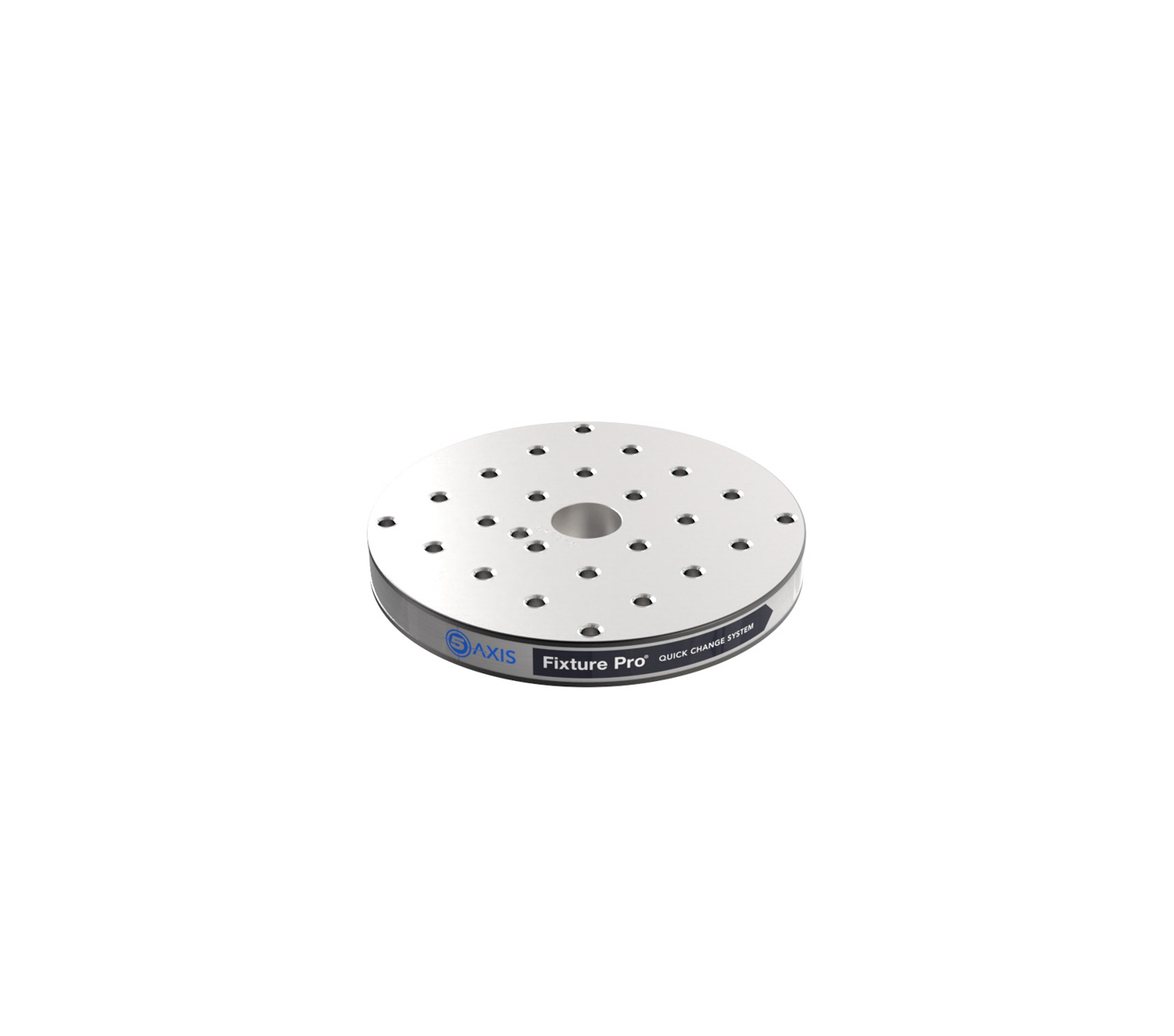

SUBPLATE, 5 AXIS, 310MM STEEL QLS
Specifications
| Long Description | 5-Axis Subplates are round or square and are configured with QLS or can be customized with our Ball Lock® Mounting System. Used as a machine or rotary table adapter. Subplates mount to the table using Locating Pins, Sine Fixture Keys, Locating Keys, or Socket Head Cap Screws. Standard subplates mount to machine table with center bore and do not include mounting holes. Material: 1018 Steel Thickness Tolerance: ±0.005 Flat & Parallel within .0005"/Ft. (.013mm) Includes Pre-Installed QLS Bushings |
|---|---|
| Short Description | SUBPLATE, 5 AXIS, 310MM STEEL QLS, 35MM X 310MM |
| Item Weight (lbs) | 41.89 |
| Included Products/Items | Includes pre-installed QLS Bushings |
