Jergens
69021

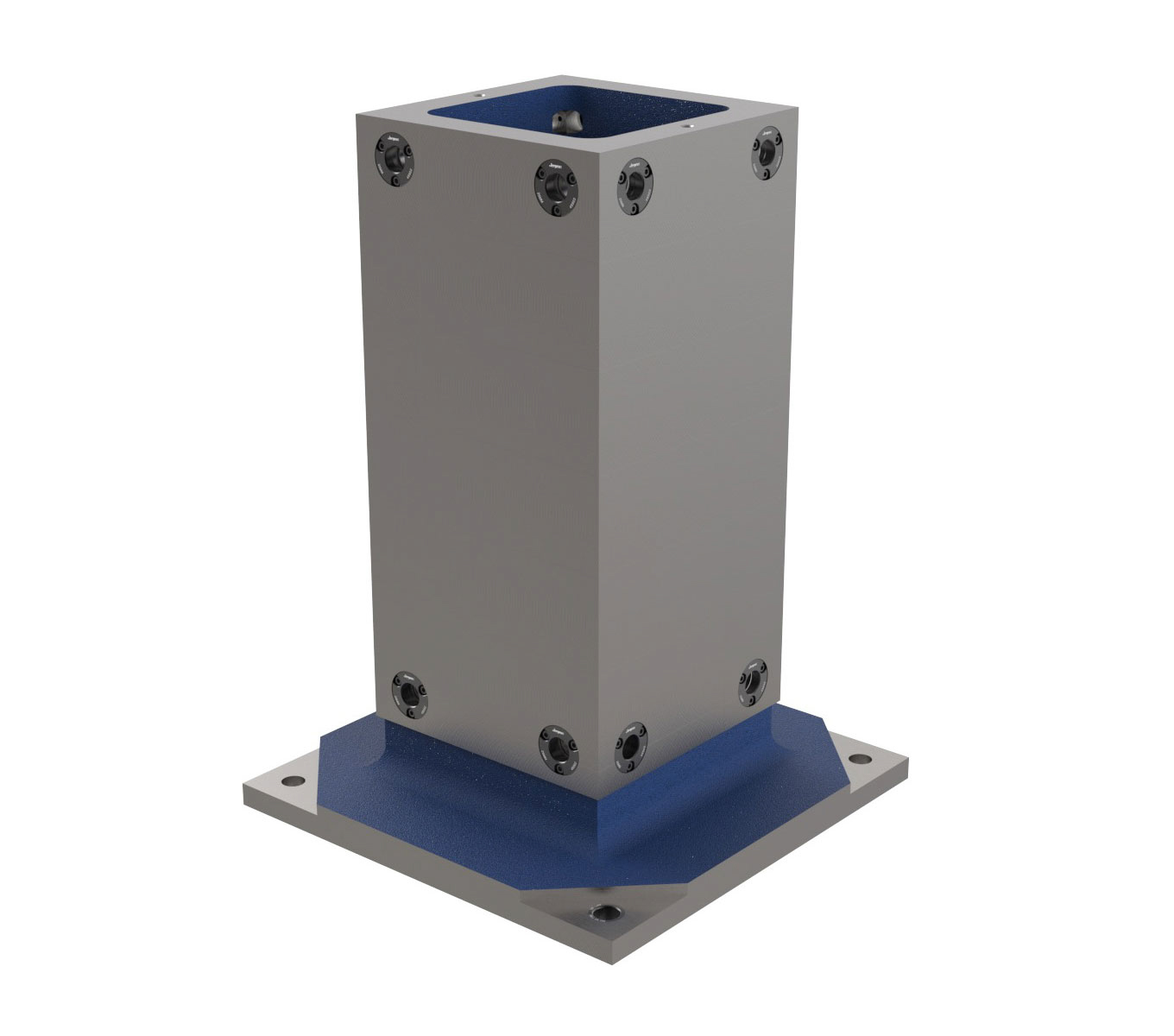

TOOLING COLUMN, 630MM, 4 SIDE
Specifications
| Material | 4-Sided |
|---|---|
| Long Description | Jergens Ball Lock® 4-Sided Tooling Columns provide an accurate fixturing base for CNC machining centers. Features, Benefits, & Product Specifications: - Material: Class 40 Cast Iron (also available in aluminum) - Ball Lock® Receiver Bushings and Liners installed - Perpendicularity is 0.001" per foot - Custom sizes available with or without Ball Lock® - Use Jergens Hoist Ring Part No. 23411 for lifting and handling (Order separately) |
| Shank Diameter | 630 mm |
| Outside Diameter | 29.875 in |
| Outside Diameter Tolerance | 630 mm |
| Bullet 1 | Ball Lock® |
| Liner Type | 16 in |
