Kennametal
6127072
KMT-6127072
Specifications
| Helix Angle | 36 degrees |
|---|---|
| Material | Carbide |
| Cutting Diameter (Inch) | 0.39 |
| Corner Radius (Inch) | 0.06 |
| Overall Length (Inch) | 1.38 |
| Cutting Diameter (Metric) | 10 |
| Overall Length (Metric) | 35 |
| Coating/Finish | AlTiN |
| Corner Radius (Metric) | 1.5 |
| Number Of Flutes | 9 |
| Unit Of Measure | Metric |
| Corner Radius | 1.50 mm |
| Cutting Direction | Right |
| Shank Length (Decimal) | 0.49 |
| Shank Length (Metric) | 12.5 |

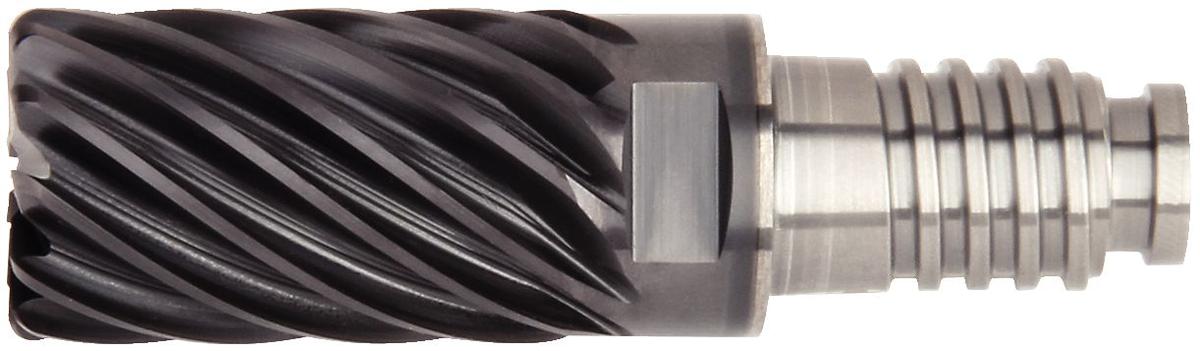

| Short Description | END MILL D-L RSM II 9F 10XDL10X15 R1,5 |
| Overall Length | 35 mm |
| Series | RSM II |
| Adapter Style | Empty |
| Adapter Type | Duo-Lock |
| Coolant Supply | No |
| End Mill Finish Type | Finisher |
| Grade | KC643M |
| Helix Hand | Right |
| Number of Ends | 1 |
| Lead Angle ISO | 90 degrees |
| Clamping Length (Decimal) | 0.49 |
| Clamping Length (Metric) | 12.5 |
| Functional Length (Decimal) | 0.89 |
| Functional Length (Metric) | 22.5 |
| Tool Assembly Length (Decimal) | 0.89 |
| Tool Assembly Length (Metric) | 22.5 |
| Cutting Diameter | 10 mm |
| Mounting Style | Duo-Lock |
| Primary Workpiece Material | Steel, Stainless Steel, High-Temp Alloys, Hardened Materials |
| Maximum 1st Cut Depth (Decimal) | 0.59 |
| Maximum 1st Cut Depth (Metric) | 15 |
| System Size Machine Side | DL10 |
| Gage Length (Decimal) | 0.89 |
| Gage Length (Metric) | 22.5 |
| Width of Flat (Decimal) | 0.32 |
| Width of Flat (Metric) | 8 |
| Adapter/Shank/Bore Diameter (Decimal) | 0.38 |
| Adapter/Shank/Bore Diameter (Metric) | 9.6 |
| Base Item Number | 6127072 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
