KYOCERA Precision Tools
8850693
KYOCERA Precision Tools 8850693
Specifications

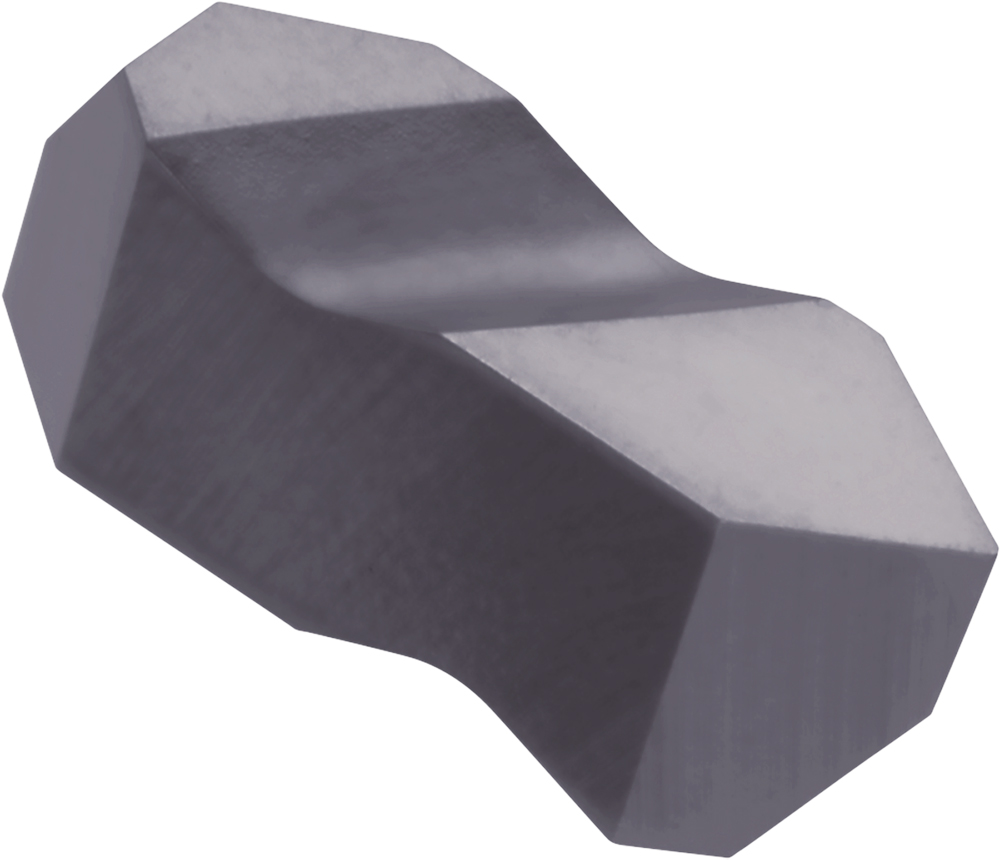

| Long Description | Kyocera KCT 2L PR1215 Grade PVD Carbide, External & Internal, 60 Degree Partial Profile, Left-Hand Threading Insert for Metric (M), Unified (UN) Threads |
|---|---|
| Material | Carbide |
| Short Description | Kyocera KCT 2L PR1215 Grade PVD Carbide, Indexable Threading Insert |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| Thread Pitch (Metric) | External M: 0.75-3.0, Internal M: 1.5-3.5 |
| UNSPSC | 23291804 |
| Thread Pitch/TPI | External UN: 8-36, Internal UN:7-20 |
| Primary Workpiece Material | (P) Carbon/Alloy Steel |
| Thread Standard | Metric (M)|Unified (UN) |
| Insert Holding Method | Clamp |
| Number of Cutting Edges | 2 |
| Insert Grade | PR1215 |
| Insert Size | 2 |
| Thread Type | External & Internal |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| Application | External Threading|Internal Threading |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | PVD |
| ECCN | EAR99 |
