KYOCERA Precision Tools
TAC01097
KYOCERA Precision Tools TAC01097
Specifications
| Material | Carbide |
|---|---|

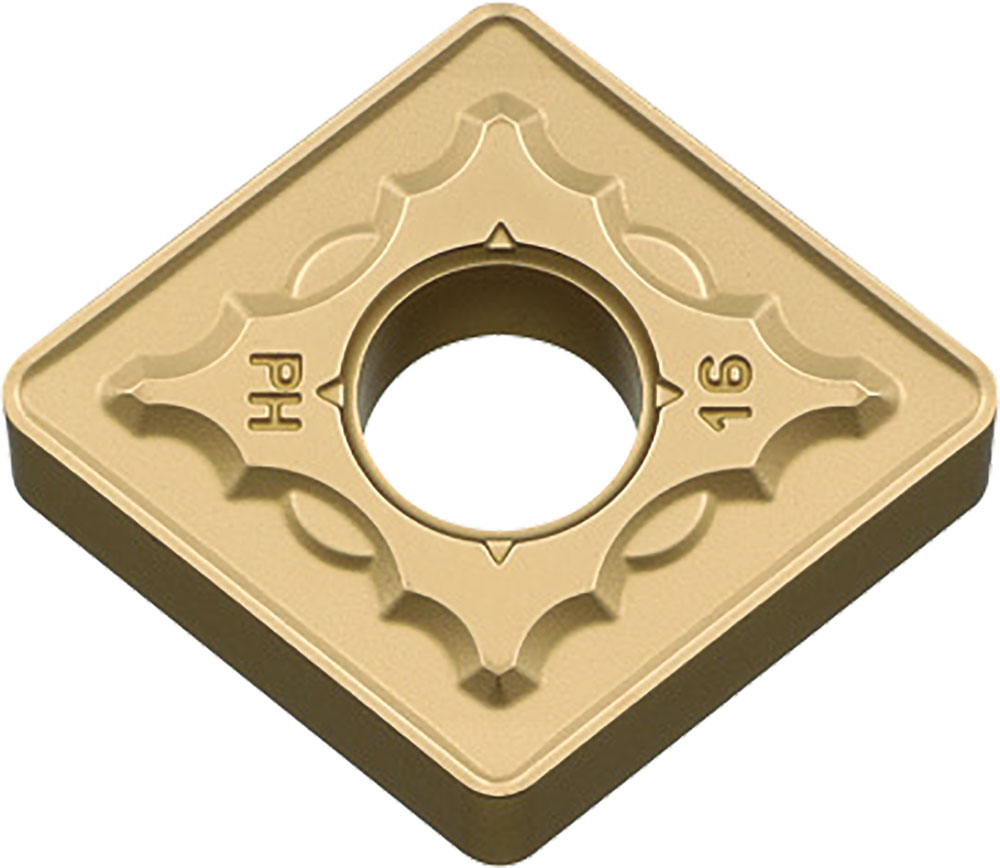

| Short Description | Kyocera CNMG 644PH CA525 Grade CVD Carbide, Indexable Turning Insert |
| Long Description | Kyocera CNMG 644PH CA525 Grade CVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Roughing in (P) Carbon/Alloy Steel |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | CVD |
| Number of Cutting Edges | 4 |
| Application | Boring|External Turning|Facing|Internal Facing |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Roughing |
| Pack Height (inches) | 0.551 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (P) Carbon/Alloy Steel |
| Insert Grade | CA525 |
| Insert Size | 644 |
| Insert Shape | 80 Degree Diamond |
| Pack Length (inches) | 5.118 |
| Pack Width (Inches) | 2.441 |
| ECCN | EAR99 |
