KYOCERA Precision Tools
TAC04430

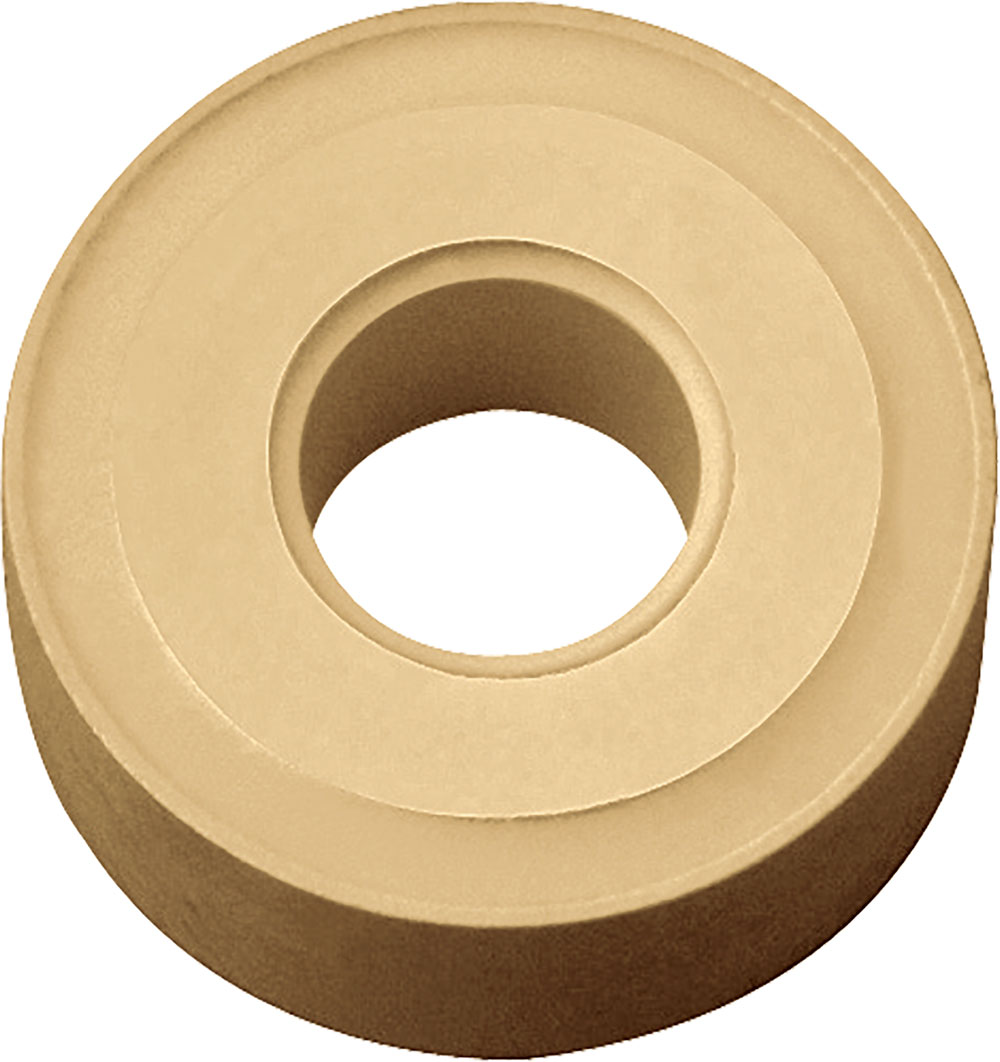

KYOCERA Precision Tools TAC04430
Specifications
| Material | Carbide |
|---|---|
| Short Description | Kyocera RNMG 32 CA525 Grade CVD Carbide, Indexable Turning Insert |
| Long Description | Kyocera RNMG 32 CA525 Grade CVD Carbide, 0 Degree, Round, Negative Rake Angle, Turning Insert for Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | CVD |
| Application | External Turning|Facing|Undercutting |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Medium-Roughing |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (P) Carbon/Alloy Steel |
| Insert Grade | CA525 |
| Insert Size | 32 |
| Insert Shape | Round |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
