KYOCERA Precision Tools
TBA02126
KYOCERA Precision Tools TBA02126
Specifications
| Material | Honeycomb CBN |
|---|---|

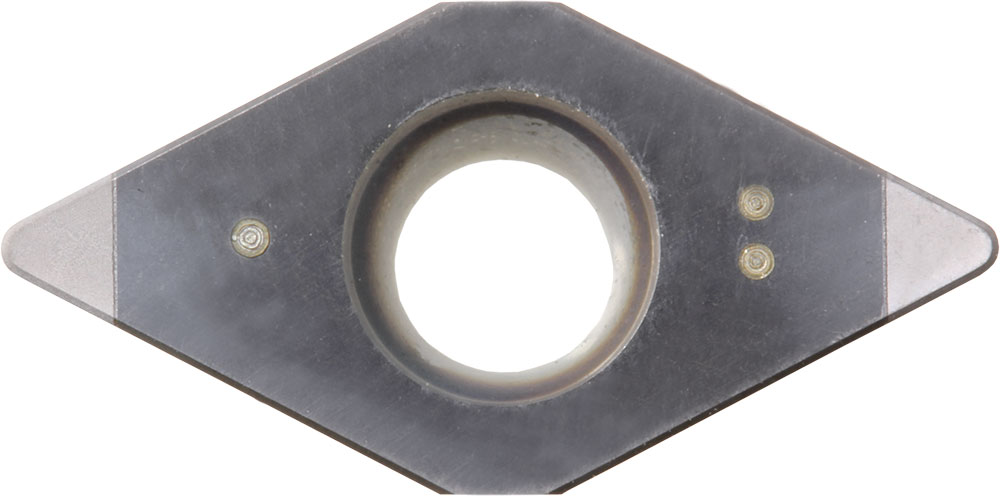

| Short Description | Kyocera DCMW 3251S00435MET KBN35M Grade Honeycomb CBN, Indexable Turning Insert |
| Long Description | Kyocera DCMW 3251S00435MET KBN35M Grade Honeycomb CBN, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Heavy Interruption and Roughing in (H) Hardened Materials |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | PVD |
| Number of Cutting Edges | 2 |
| Application | Back Boring|Copying|External Turning |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Roughing |
| Pack Height (inches) | 0.433 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (H) Hardened Materials |
| Insert Grade | KBN35M |
| Insert Size | 3251 |
| Insert Shape | 55 Degree Diamond |
| Pack Length (inches) | 2.362 |
| Pack Width (Inches) | 1.693 |
| ECCN | EAR99 |
