KYOCERA Precision Tools
TBD00295
KYOCERA Precision Tools TBD00295
Specifications
| Material | PCD |
|---|---|

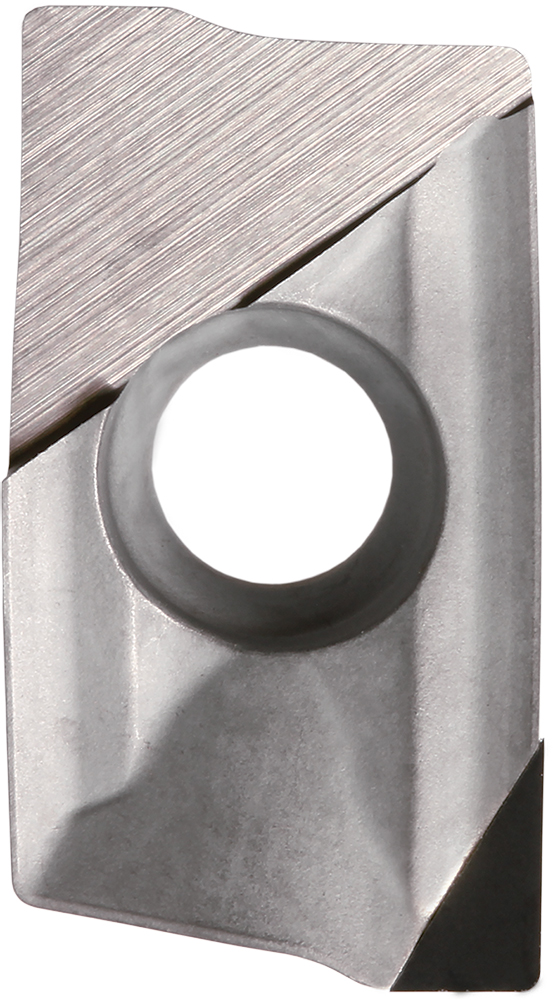

| Short Description | Kyocera BDMT 170402FR KPD230 Grade PCD, Indexable Milling Insert |
| Long Description | Kyocera BDMT 170402FR KPD230 Grade PCD, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Finishing in (N) Non-Ferrous Metals and (S) Titanium Alloy |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 1 |
| Application | Facing|Helical Milling|Shouldering|Slotting |
| Insert Size | 170402 |
| Cutting Range | Finishing |
| Pack Height (inches) | 0.433 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23291601 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Insert Holding Method | Screw |
| Insert Grade | KPD230 |
| Insert Shape | Parallelogram |
| Pack Length (inches) | 2.362 |
| Pack Width (Inches) | 1.693 |
| ECCN | EAR99 |
