KYOCERA Precision Tools
TBR05152
KYOCERA Precision Tools TBR05152
Specifications
| Material | PCD |
|---|---|

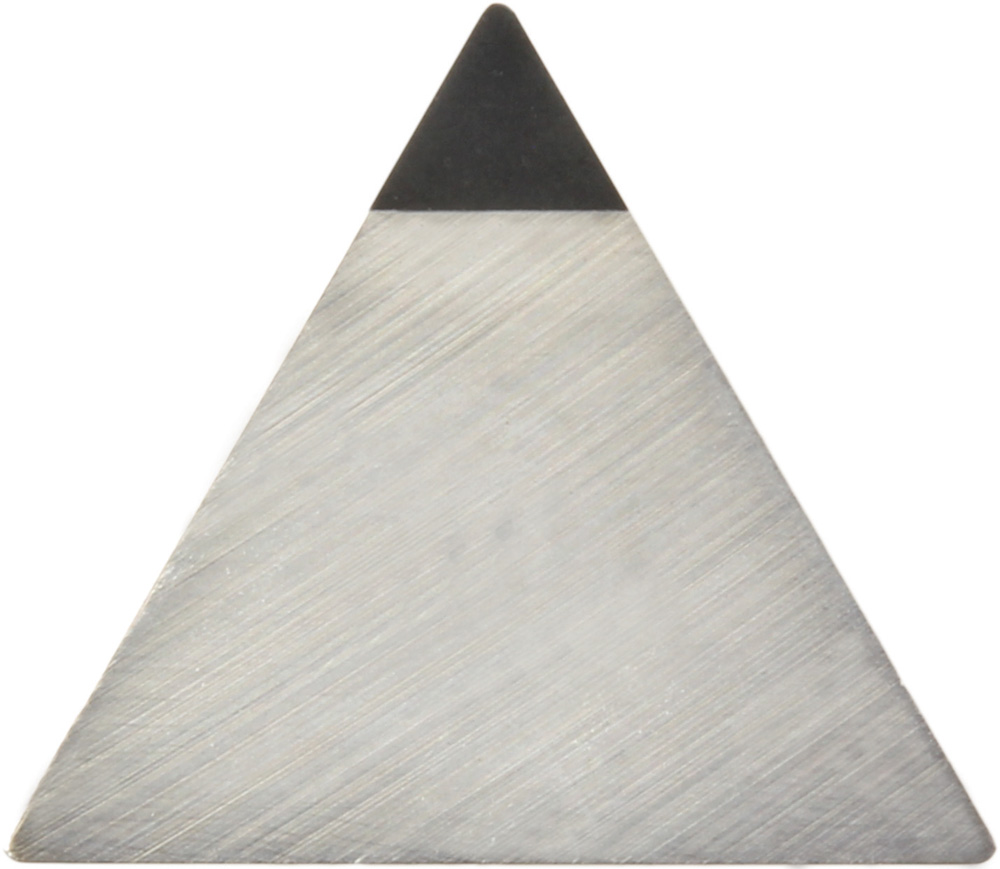

| Short Description | Kyocera TPG 321SE KPD001 Grade PCD, Indexable Turning Insert |
| Long Description | Kyocera TPG 321SE KPD001 Grade PCD, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 1 |
| Application | Boring|Chamfering|External Turning|Facing |
| Insert Holding Method | Clamp |
| Cutting Range | Finishing-Medium |
| Pack Height (inches) | 0.433 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (N) Non-Ferrous Materials|(S) Titanium Alloy |
| Insert Grade | KPD001 |
| Insert Size | 321 |
| Insert Shape | 60 Degree Triangle |
| Pack Length (inches) | 2.362 |
| Pack Width (Inches) | 1.693 |
| ECCN | EAR99 |
