KYOCERA Precision Tools
TBR40012
KYOCERA Precision Tools TBR40012
Specifications
| Material | PCD |
|---|---|

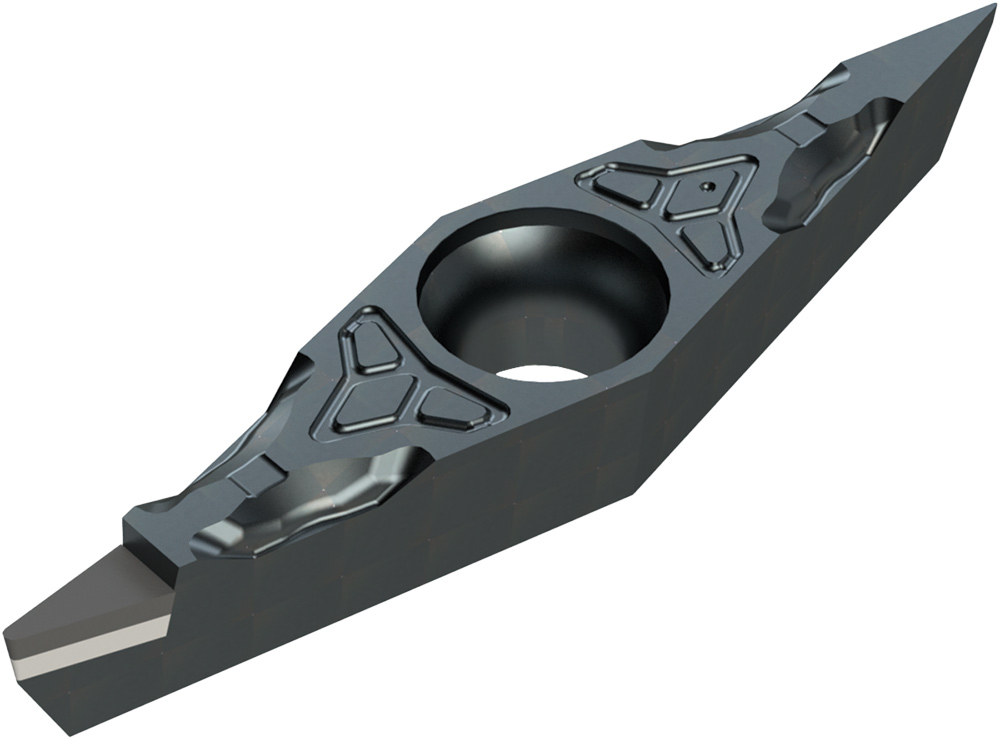

| Short Description | Kyocera ZBMT 13T301NE KPD001 Grade PCD, Indexable Turning Insert |
| Long Description | Kyocera ZBMT 13T301NE KPD001 Grade PCD, 25 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interrupted Profiling in (N) Non-Ferrous Metals |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 1 |
| Application | Copying|Profiling|Tapering|Undercutting|V-Shape Slotting |
| Insert Holding Method | Screw |
| Cutting Range | Finishing |
| Pack Height (inches) | 0.433 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (N) Non-Ferrous Materials |
| Insert Grade | KPD001 |
| Insert Size | 13T301 |
| Insert Shape | 25 Degree Diamond |
| Pack Length (inches) | 2.362 |
| Pack Width (Inches) | 1.693 |
| ECCN | EAR99 |
