KYOCERA Precision Tools
TBT04916
KYOCERA Precision Tools TBT04916
Specifications
| Material | CBN |
|---|---|

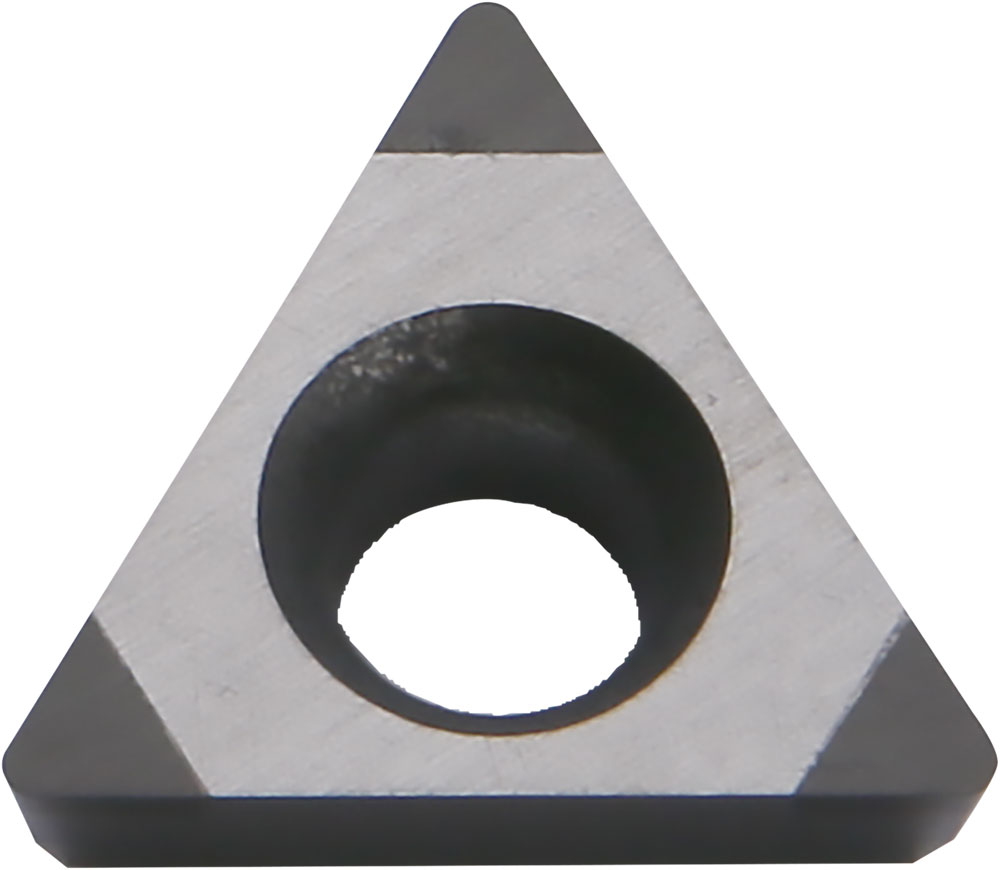

| Short Description | Kyocera TPGB 221MEF KBN570 Grade CBN, Indexable Turning Insert |
| Long Description | Kyocera TPGB 221MEF KBN570 Grade CBN, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in Powdered Steel |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 3 |
| Application | Back Boring|Boring|Copying|External Turning|Internal Facing |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Finishing-Medium |
| Pack Height (inches) | 0.433 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | Powdered Steel |
| Insert Grade | KBN570 |
| Insert Size | 221 |
| Insert Shape | 60 Degree Triangle |
| Pack Length (inches) | 2.362 |
| Pack Width (Inches) | 1.693 |
| ECCN | EAR99 |
