KYOCERA Precision Tools
TBZ01810
KYOCERA Precision Tools TBZ01810
Specifications
| Material | CBN |
|---|---|

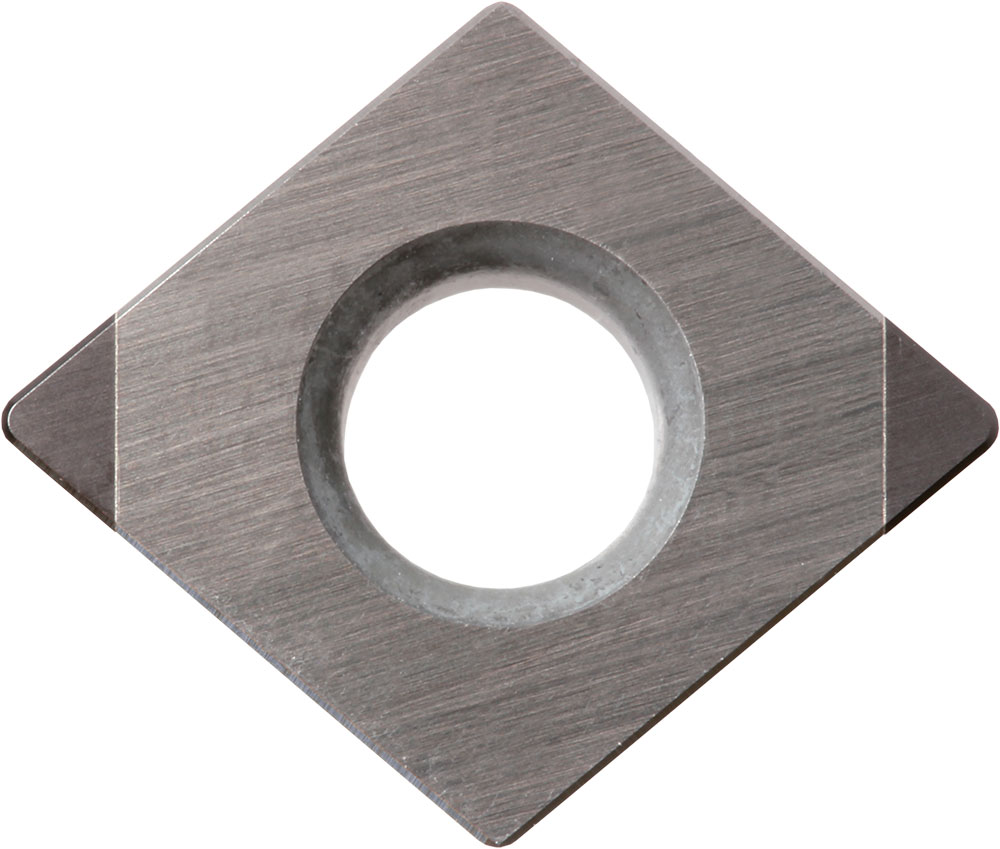

| Short Description | Kyocera CPGB 25151S00435MET KBN25M Grade CBN, Indexable Turning Insert |
| Long Description | Kyocera CPGB 25151S00435MET KBN25M Grade CBN, 11 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Medium in (H) Hardened Materials |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | PVD |
| Number of Cutting Edges | 2 |
| Application | Boring|Internal Facing |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Medium |
| Pack Height (inches) | 0.433 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (H) Hardened Materials |
| Insert Grade | KBN25M |
| Insert Size | 25151 |
| Insert Shape | 80 Degree Diamond |
| Pack Length (inches) | 2.362 |
| Pack Width (Inches) | 1.693 |
| ECCN | EAR99 |
