KYOCERA Precision Tools
TCR89310
KYOCERA Precision Tools TCR89310
Specifications
| Material | Ceramic |
|---|---|

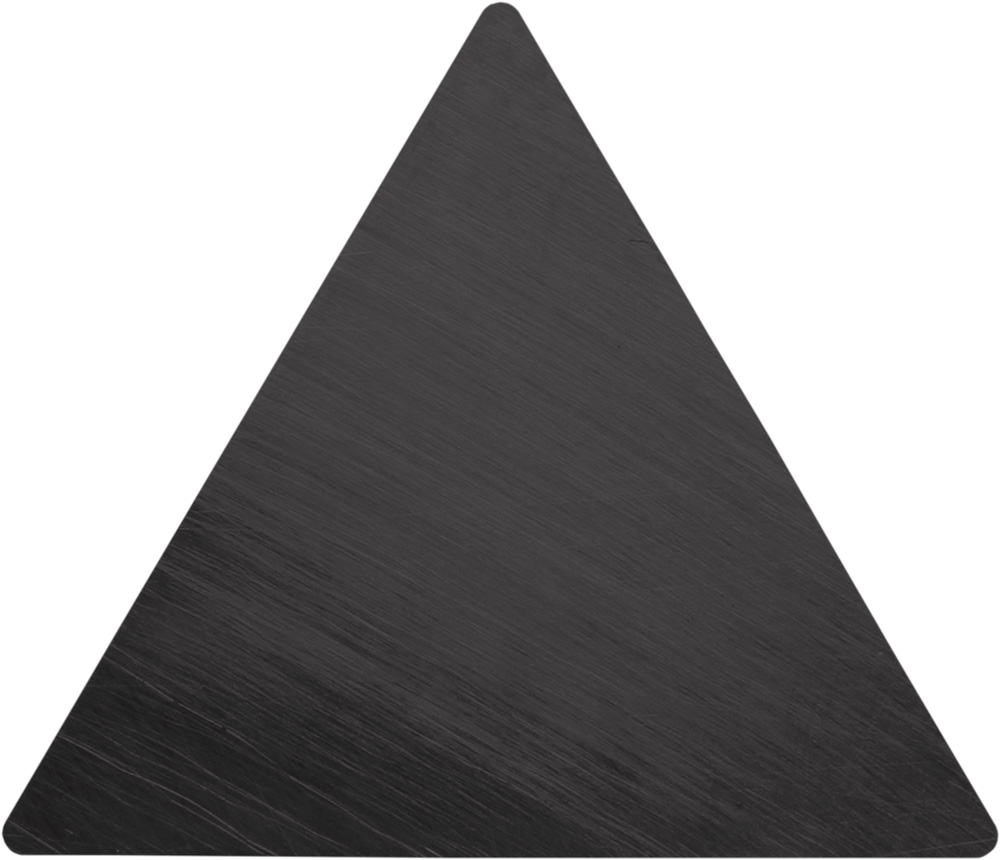

| Short Description | Kyocera TPG 432T00320 A65 Grade Uncoated Ceramic, Indexable Turning Insert |
| Long Description | Kyocera TPG 432T00320 A65 Grade Uncoated Ceramic, 11 Degree, Triangle, Positive Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (K) Gray Cast Iron, (H) Hardened Materials |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 3 |
| Application | Boring|Chamfering|External Turning|Facing |
| Insert Holding Method | Clamp |
| Cutting Range | Finishing-Medium |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 6909.12.0000 |
| UNSPSC | 23242108 |
| Primary Workpiece Material | (K) Gray Cast Iron|(H) Hardened Materials |
| Insert Grade | A65 |
| Insert Size | 432 |
| Insert Shape | 60 Degree Triangle |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
