KYOCERA Precision Tools
TCV08012
KYOCERA Precision Tools TCV08012
Specifications
| Material | Ceramic |
|---|---|

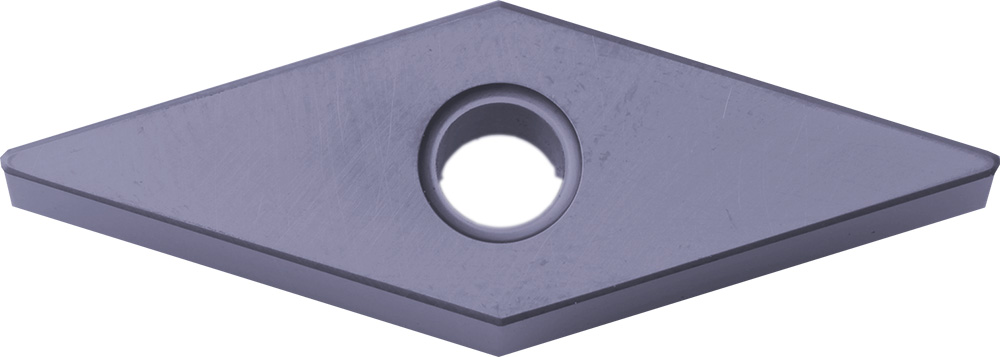

| Short Description | Kyocera VNGA 333T00825 PT600M Grade Ceramic, Indexable Turning Insert |
| Long Description | Kyocera VNGA 333T00825 PT600M Grade Ceramic, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials and (K) Gray Cast Iron |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | PVD |
| Number of Cutting Edges | 4 |
| Application | Copying|External Turning|Facing|Undercutting |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Finishing-Medium |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 6909.12.0000 |
| UNSPSC | 23242108 |
| Primary Workpiece Material | (H) Hardened Materials |
| Insert Grade | PT600M |
| Insert Size | 333 |
| Insert Shape | 35 Degree Diamond |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
