KYOCERA Precision Tools
TFF00026
KYOCERA Precision Tools TFF00026
Specifications
| Material | CBN |
|---|---|

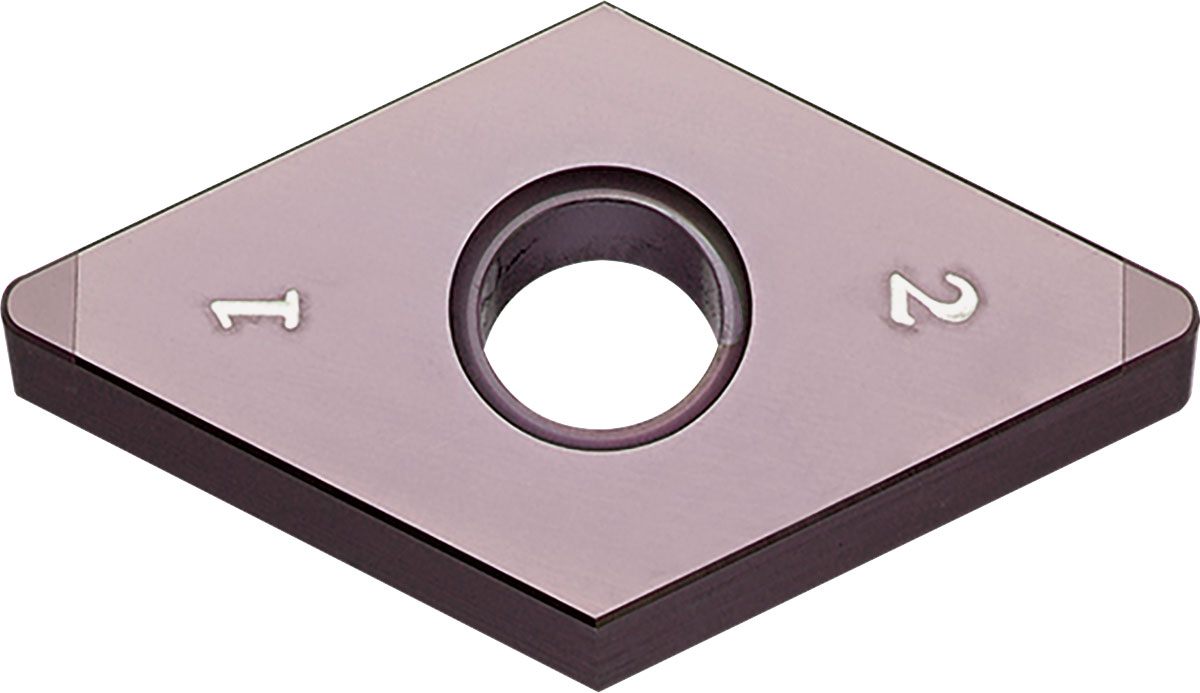

| Short Description | Kyocera DNGA 432S00525ME KBN015 Grade CBN, Indexable Turning Insert |
| Long Description | Kyocera DNGA 432S00525ME KBN015 Grade CBN, 55 Degree Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous to Light Interruption Machining of (H) Hardened Materials |
| Country of Origin | JP |
| Series | ISOI |
| Coating Process Type | PVD |
| Number of Cutting Edges | 2 |
| Application | Boring|Copying|External Turning |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Finishing-Medium |
| Pack Height (inches) | 0.433 |
| Harmonized Code | 3824.99.3990 |
| UNSPSC | 23242105 |
| Primary Workpiece Material | (H) Hardened Materials |
| Insert Grade | KBN015 |
| Insert Size | 432 |
| Insert Shape | 55 Degree Diamond |
| Pack Length (inches) | 2.362 |
| Pack Width (Inches) | 1.693 |
| ECCN | EAR99 |
