KYOCERA Precision Tools
THN07054
KYOCERA Precision Tools THN07054
Specifications
| Material | Steel |
|---|---|
| Shank Type | Modular Connection |

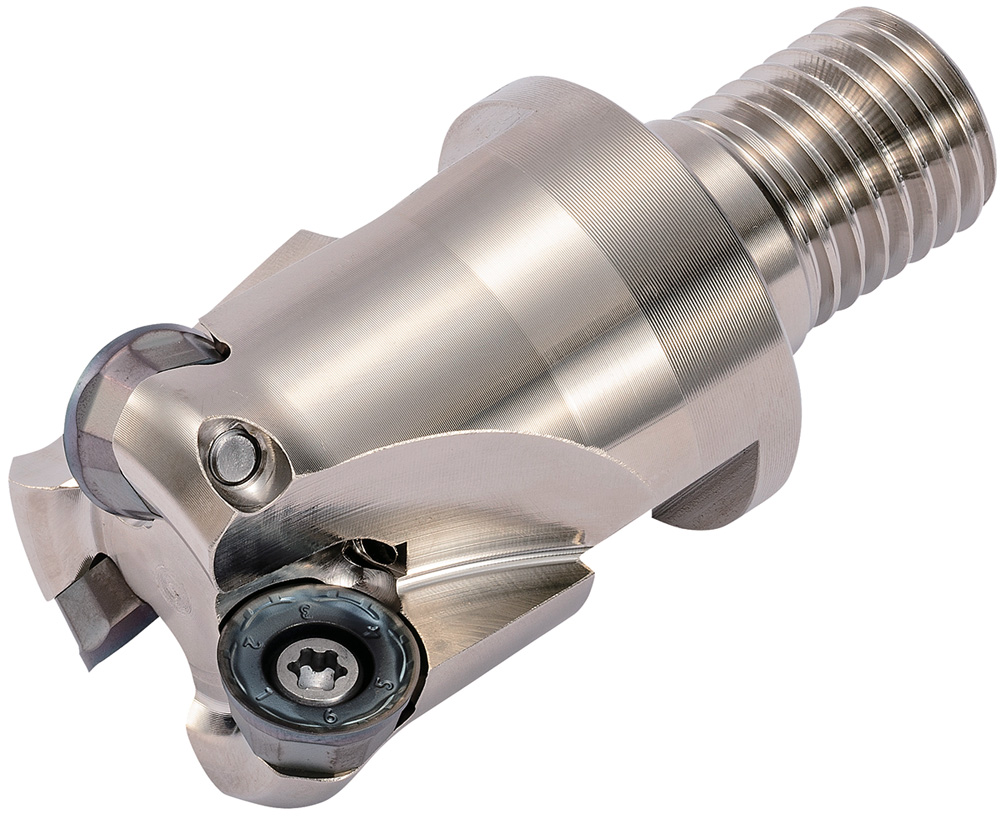

| Short Description | Kyocera MRX 25M12103T RAD-6 Series, Modular Head, Radius End Mill |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Application | Facing|Pocketing|Profiling|Ramping|Shouldering|Slotting |
| Long Description | Kyocera MRX 25M12103T RAD-6 Series, 3 Flute, Modular Head, Radius End Mill with a 25.00mm Cutting Diameter for Facing, Slotting, Shouldering, Pocketing, Ramping, Profiling Applications |
| Number Of Inserts | 3 |
| Weldon Flat | No |
| Pack Height (inches) | 1.969 |
| Harmonized Code | 8466.10.0130 |
| UNSPSC | 27112803 |
| Number Of Flutes | 3 |
| Insert Holding Method | Screw |
| Pack Length (inches) | 14.173 |
| Pack Width (Inches) | 1.969 |
| ECCN | EAR99 |
