KYOCERA Precision Tools
THN07649
KYOCERA Precision Tools THN07649
Specifications
| Material | Steel |
|---|---|
| Shank Type | Extra-Long Length |

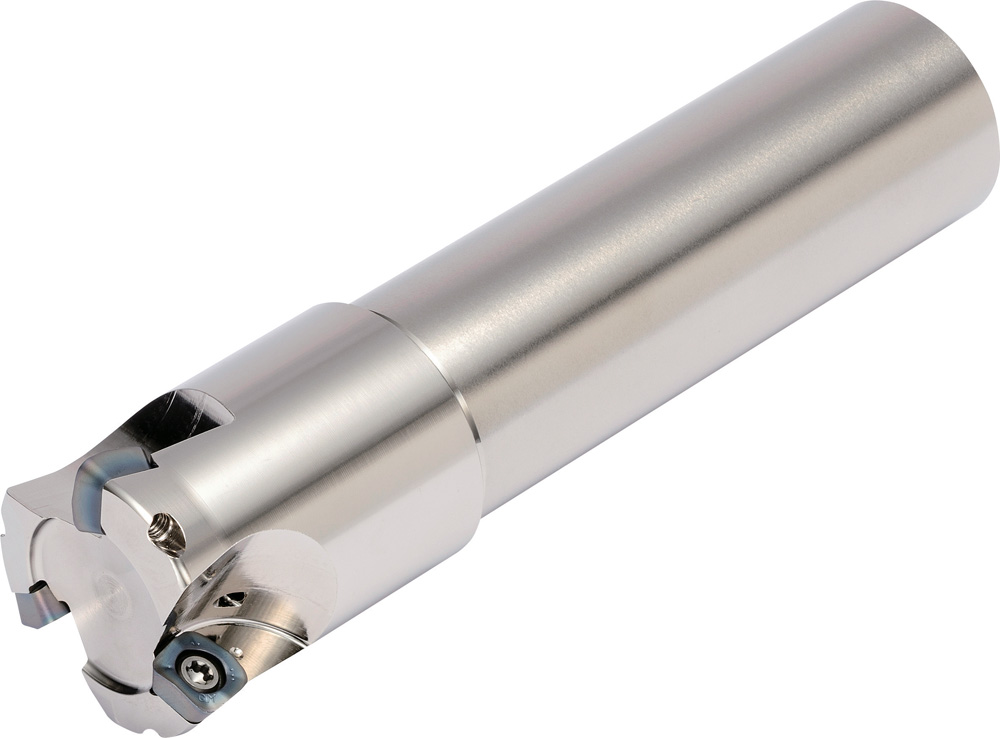

| Short Description | Kyocera MFH 40S32104T300, MFH-RAPTOR, Extra Long Length Shank, High-Feed End Mill |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Application | Facing|Helical Milling|Plunging|Ramping|Shouldering|Slotting |
| Long Description | Kyocera MFH 40S32104T300, Extra Long Length, Cylindrical Shank, 4 Flute, 10 Degree High-Feed End Mill with a 40.00mm Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Helical Milling, Plunging Applications |
| Number Of Inserts | 4 |
| Weldon Flat | No |
| Pack Height (inches) | 2.362 |
| Harmonized Code | 8466.10.0130 |
| UNSPSC | 27112803 |
| Number Of Flutes | 4 |
| Insert Holding Method | Screw |
| Pack Length (inches) | 14.173 |
| Pack Width (Inches) | 2.362 |
| ECCN | EAR99 |
