KYOCERA Precision Tools
TJY18921
KYOCERA Precision Tools TJY18921
Specifications

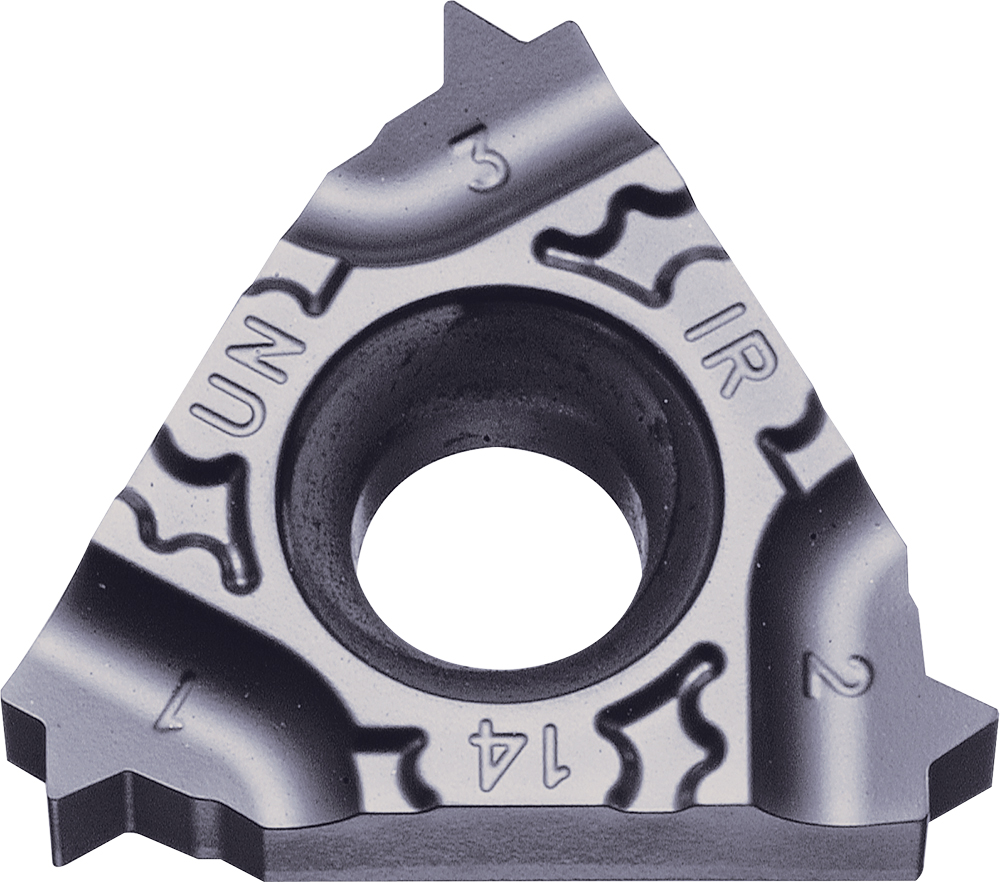

| Long Description | Kyocera 16 IR08UNTF PR1115 Grade PVD Carbide, Internal, 60 Degree Full Profile, Right-Hand Threading Insert for Unified (UN) Threads |
|---|---|
| Material | Carbide |
| Short Description | Kyocera 16 IR08UNTF PR1115 Grade PVD Carbide, Indexable Threading Insert |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23291804 |
| Thread Pitch/TPI | UN, UNF: 8 |
| Primary Workpiece Material | (P) Carbon/Alloy Steel|(M) Stainless Steel |
| Thread Standard | Unified (UN) |
| Insert Holding Method | Screw or Clamp |
| Number of Cutting Edges | 3 |
| Insert Grade | PR1115 |
| Insert Size | 16 |
| Thread Type | Internal |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| Application | Internal Threading |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | PVD |
| ECCN | EAR99 |
