KYOCERA Precision Tools
TLC18640
KYOCERA Precision Tools TLC18640
Specifications
| Thread Standard | Tapered Pipe [R(PT), (BSPT)] |
|---|---|
| Material | Carbide |

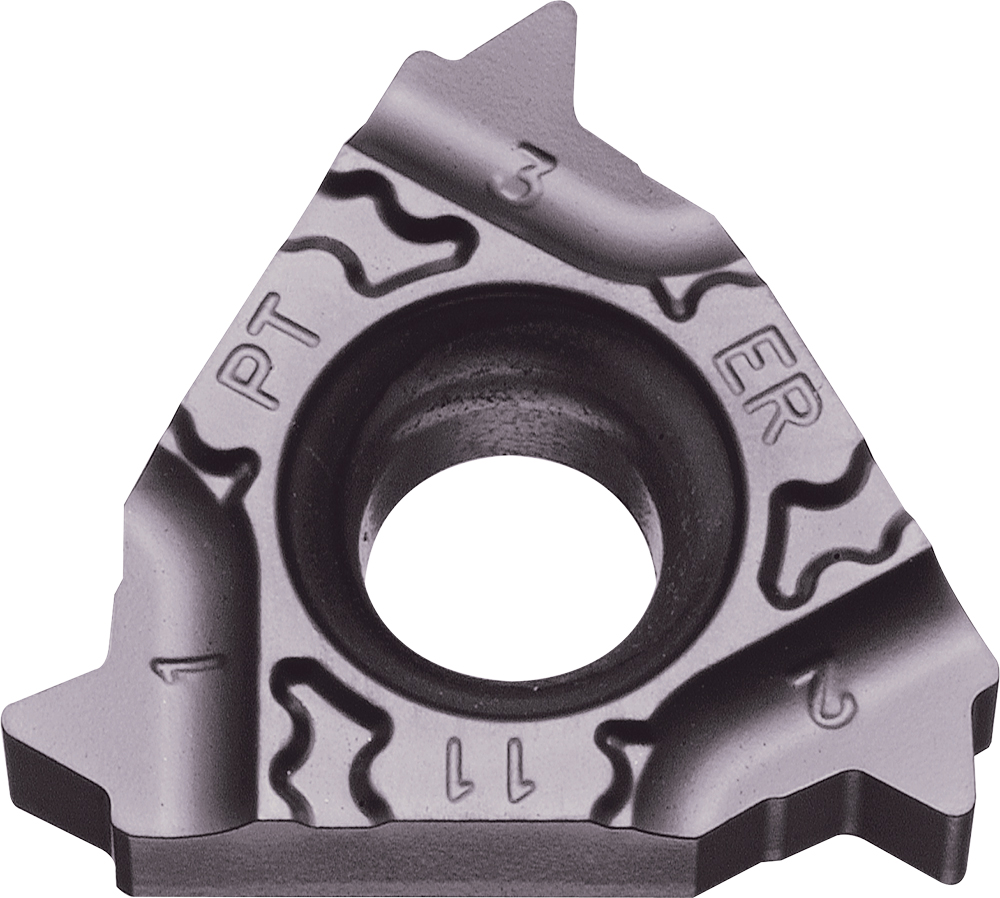

| Short Description | Kyocera 16ER 19BSPTTF PR1535 Grade PVD Carbide, Indexable Threading Insert |
| Series | LDT |
| Thread Type | External |
| Coating Process Type | PVD |
| Number of Cutting Edges | 3 |
| Application | External Threading |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Long Description | Kyocera 16ER 19BSPTTF PR1535 Grade PVD Carbide, External, 55 Degree Full Profile, Right-Hand Threading Insert for Tapered Pipe [R(PT), (BSPT)] Threads |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23291804 |
| Thread Pitch/TPI | R(PT), (BSPT): 19 |
| Primary Workpiece Material | (M) Stainless Steel |
| Insert Holding Method | Screw or Clamp |
| Insert Grade | PR1535 |
| Insert Size | 16 |
| Secondary Workpiece Material | (P) Carbon/Alloy Steel|(S) Heat-Resistant Alloy |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
