KYOCERA Precision Tools
TLF01200
KYOCERA Precision Tools TLF01200
Specifications
| Material | Cermet |
|---|---|

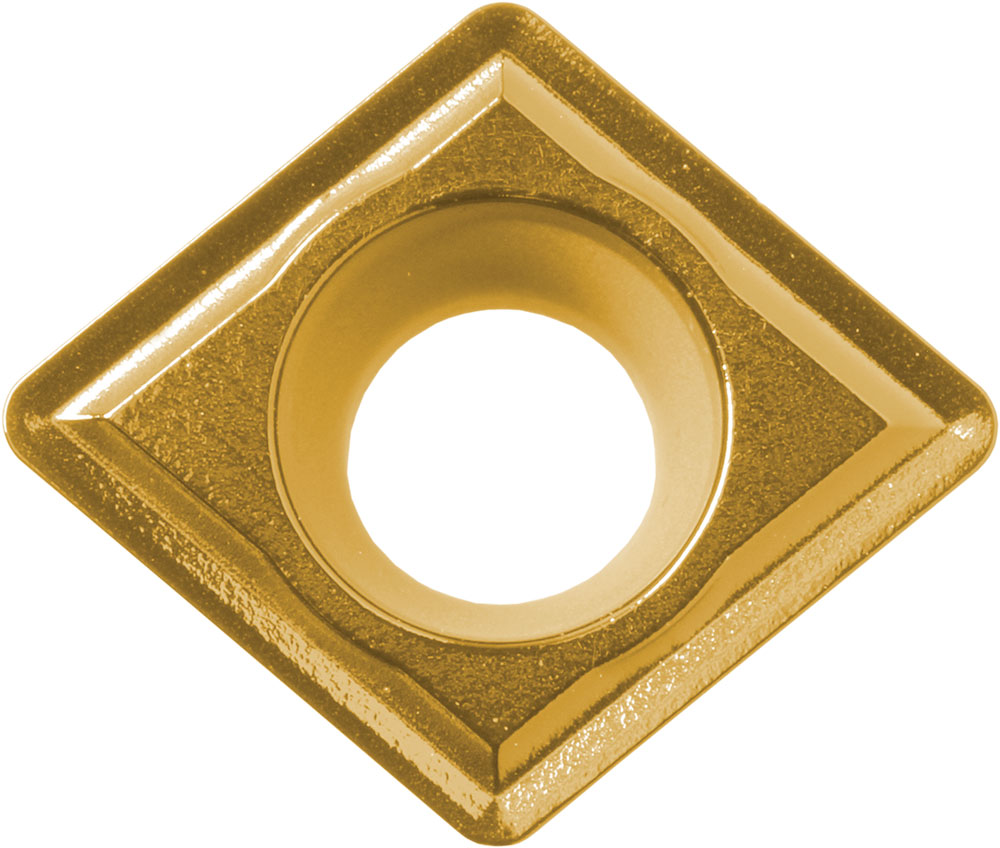

| Short Description | Kyocera CCGT 21502 PV710 Grade PVD Cermet, Indexable Turning Insert |
| Long Description | Kyocera CCGT 21502 PV710 Grade PVD Cermet, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous and Medium in (P) Carbon/Alloy Steel |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | PVD |
| Number of Cutting Edges | 2 |
| Application | Boring|External Turning|Facing|Internal Facing|Sub-Spindle |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Medium |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0060 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (P) Carbon/Alloy Steel |
| Insert Grade | PV710 |
| Insert Size | 21502 |
| Insert Shape | 80 Degree Diamond |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
