KYOCERA Precision Tools
TLX00171
KYOCERA Precision Tools TLX00171
Specifications
| Material | Carbide |
|---|---|

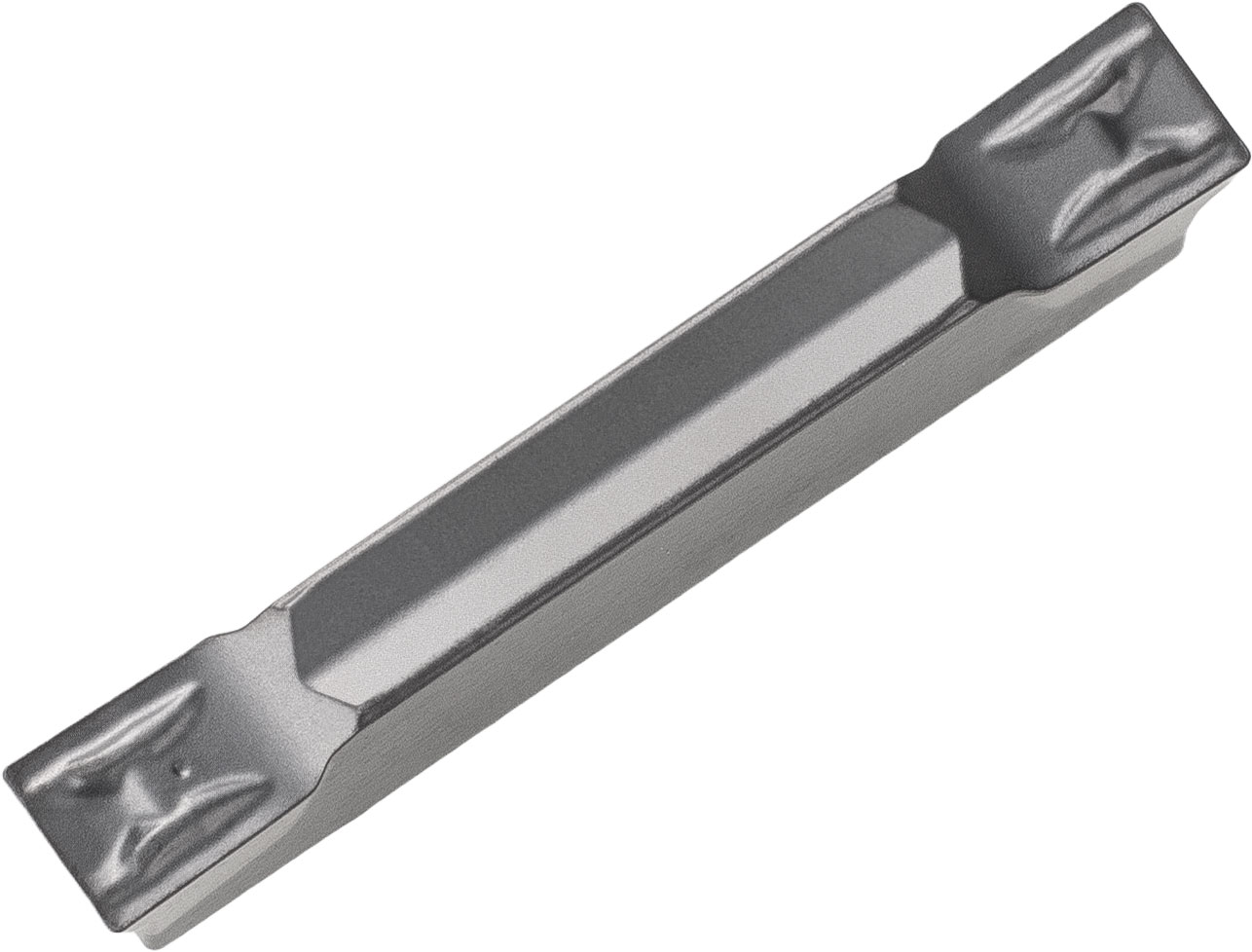

| Long Description | Kyocera GZM 3020N040GM PR2015 Grade PVD Carbide, 3.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel |
| Short Description | Kyocera GZM 3020N040GM PR2015 Grade PVD Carbide, Indexable Grooving Insert |
| Series | KGZ |
| Coating Process Type | PVD |
| Number of Cutting Edges | 2 |
| Application | External Grooving|Traversing |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Cutting Range | Medium |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Cutting Width Tolerance (Inch) | +0.0012/-0.0012 |
| Primary Workpiece Material | (P) Steel |
| Insert Holding Method | Clamp |
| Insert Grade | PR2015 |
| Insert Size | 3020 |
| Cutting Width Tolerance (mm) | +0.03/-0.03 |
| Secondary Workpiece Material | (M) Stainless Steel |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
