KYOCERA Precision Tools
TMC04401
KYOCERA Precision Tools TMC04401
Specifications
| Material | Carbide |
|---|---|

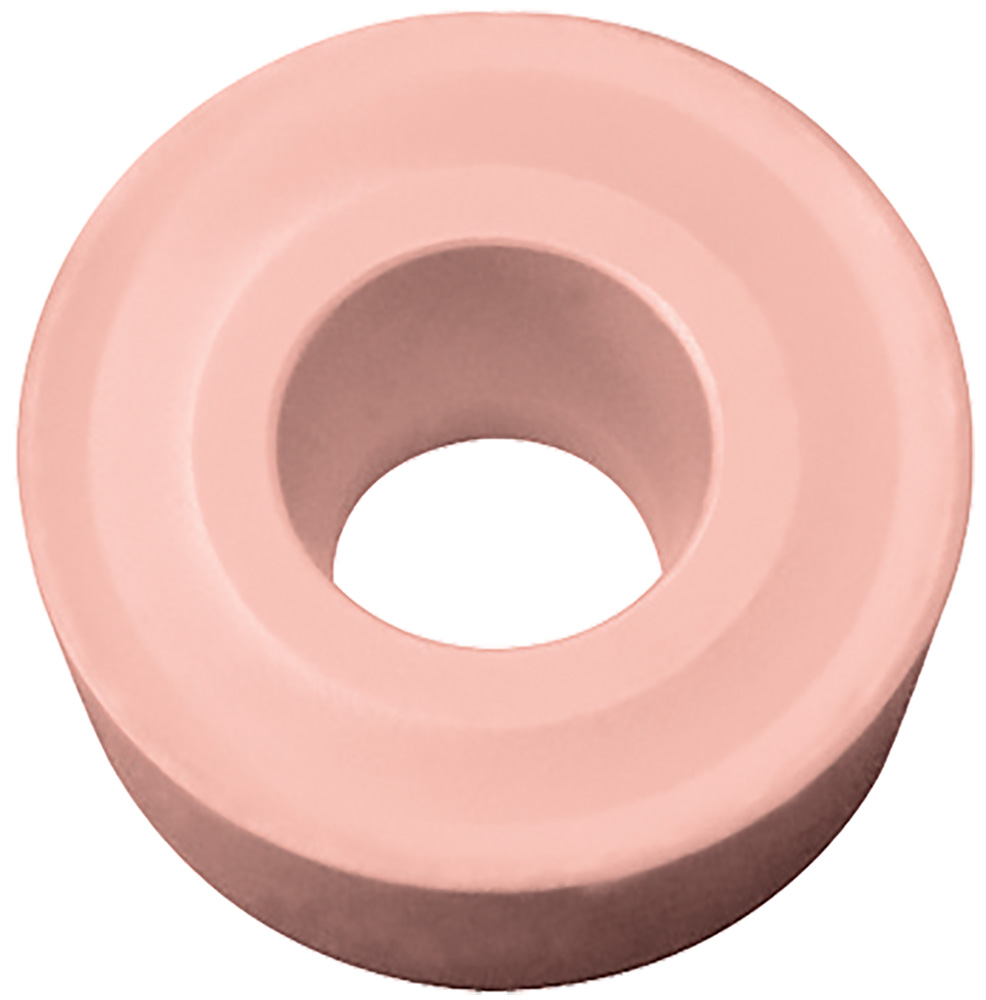

| Short Description | Kyocera RCMX 1204M0 CA310 Grade CVD Carbide, Indexable Turning Insert |
| Long Description | Kyocera RCMX 1204M0 CA310 Grade CVD Carbide, 7 Degree, Round, Positive Rake Angle, Turning Insert for Continuous and Medium in (K) Gray Cast Iron and (K) Nodular Cast Iron |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | CVD |
| Application | External Turning|Facing|Undercutting |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Medium |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (K) Gray Cast Iron |
| Insert Grade | CA310 |
| Insert Size | 1204 |
| Insert Shape | Round |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
