KYOCERA Precision Tools
TME01830
KYOCERA Precision Tools TME01830
Specifications
| Material | Carbide |
|---|---|

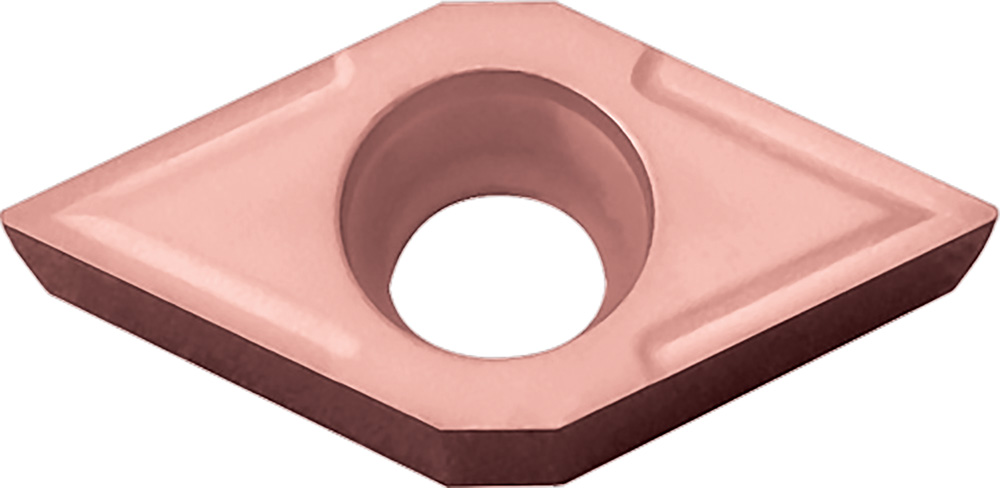

| Short Description | Kyocera DCMT 3252 CA320 Grade CVD Carbide, Indexable Turning Insert |
| Long Description | Kyocera DCMT 3252 CA320 Grade CVD Carbide, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Heavy Interruption and Medium in (K) Nodular Cast Iron and (K) Gray Cast Iron |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | CVD |
| Number of Cutting Edges | 2 |
| Application | Back Boring|Copying|External Turning |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Medium |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (K) Nodular Cast Iron |
| Insert Grade | CA320 |
| Insert Size | 3252 |
| Insert Shape | 55 Degree Diamond |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
