KYOCERA Precision Tools
TMF05751
KYOCERA Precision Tools TMF05751
Specifications
| Material | Carbide |
|---|---|
| Insert Shape | 90 Degree Square |
| Primary Workpiece Material | (M) Stainless Steel |

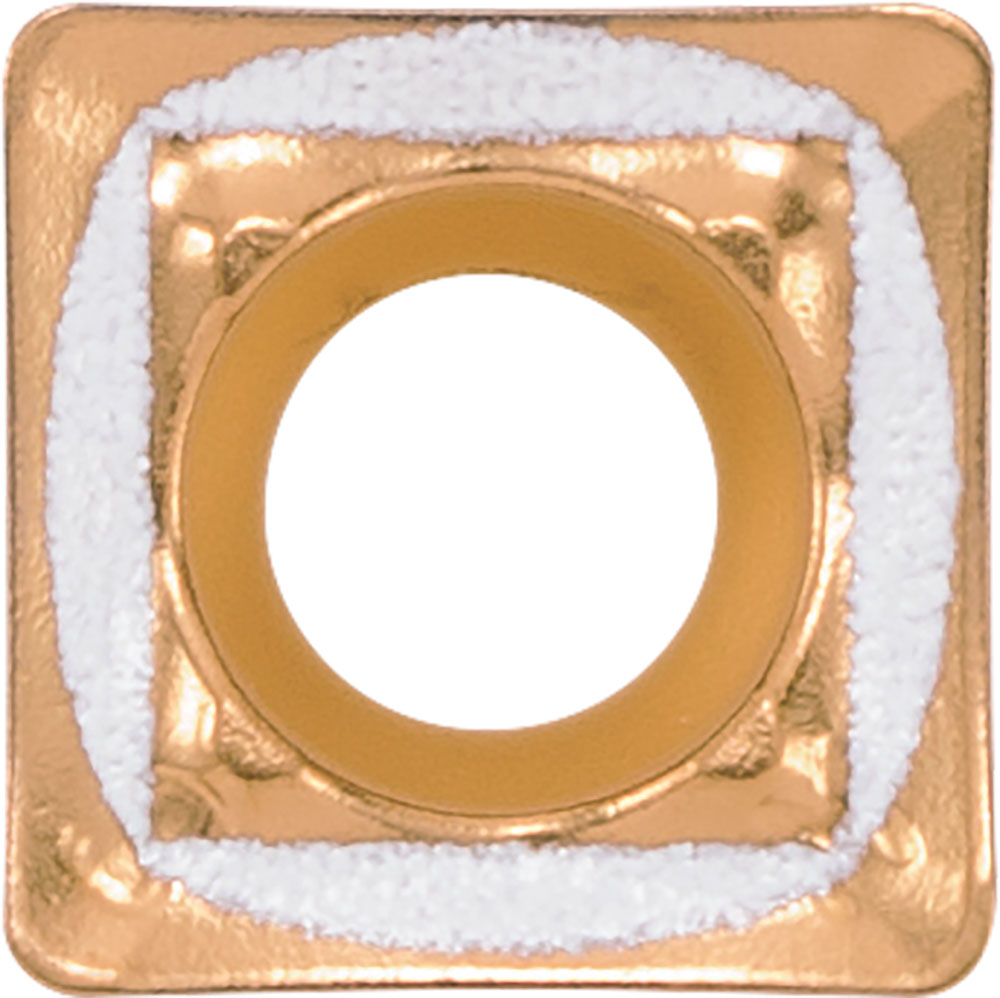

| Short Description | Kyocera SCMT 170608SME CA520D Grade CVD Carbide, Indexable Drilling Insert |
| Coating Process Type | CVD |
| Number of Cutting Edges | 4 |
| Application | Drilling |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Long Description | Kyocera SCMT 170608SME CA520D Grade CVD Carbide, Right-Hand Drilling Insert for (P) Carbon/Alloy Steel, (P) Tool Steel, (M) Stainless Steel (DRV Magic Drill) |
| Pack Height (inches) | 0.591 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Insert Holding Method | Screw |
| Insert Grade | CA520D |
| Insert Size | 170608 |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
