KYOCERA Precision Tools
TMN00154
KYOCERA Precision Tools TMN00154
Specifications
| Material | Carbide |
|---|---|

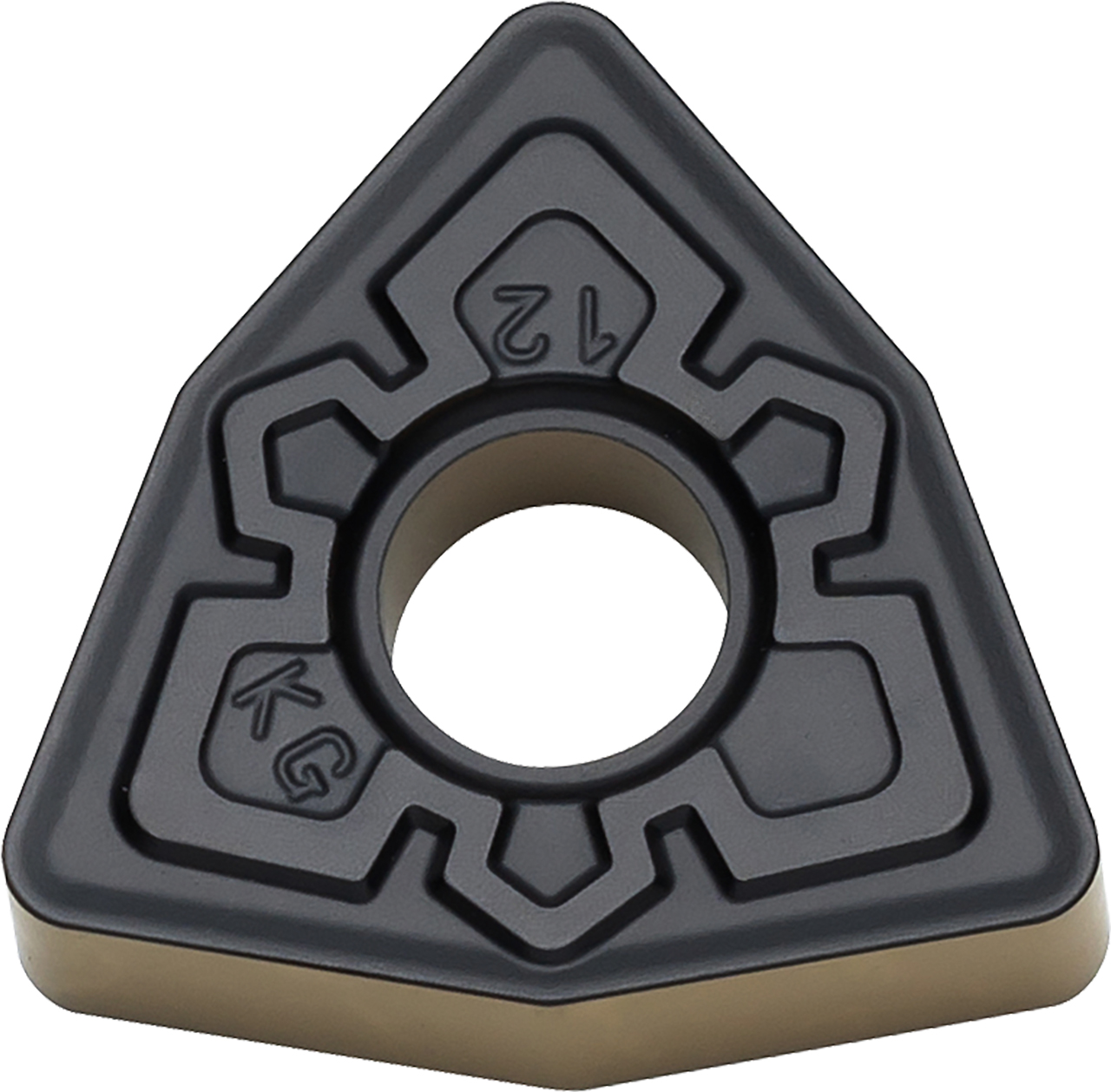

| Short Description | Kyocera WNMG 433KG CA415K Grade CVD Carbide, Indexable Turning Insert |
| Long Description | Kyocera WNMG 433KG CA415K Grade CVD Carbide, 0 Degree, Trigon, Negative Rake Angle, Neutral Turning Insert for Continuous to Light Interruption and Medium-Roughing in (K) Gray Cast Iron and (K) Nodular Cast Iron |
| Country of Origin | JP |
| Series | ISOI |
| Coating Process Type | CVD |
| Number of Cutting Edges | 6 |
| Application | Boring|External Turning|Facing|Internal Facing |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Medium-Roughing |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (K) Gray Cast Iron |
| Insert Grade | CA415K |
| Insert Size | 433 |
| Insert Shape | 80 Degree Trigon |
| Secondary Workpiece Material | (K) Nodular Cast Iron |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
