KYOCERA Precision Tools
TSB01110
KYOCERA Precision Tools TSB01110
Specifications

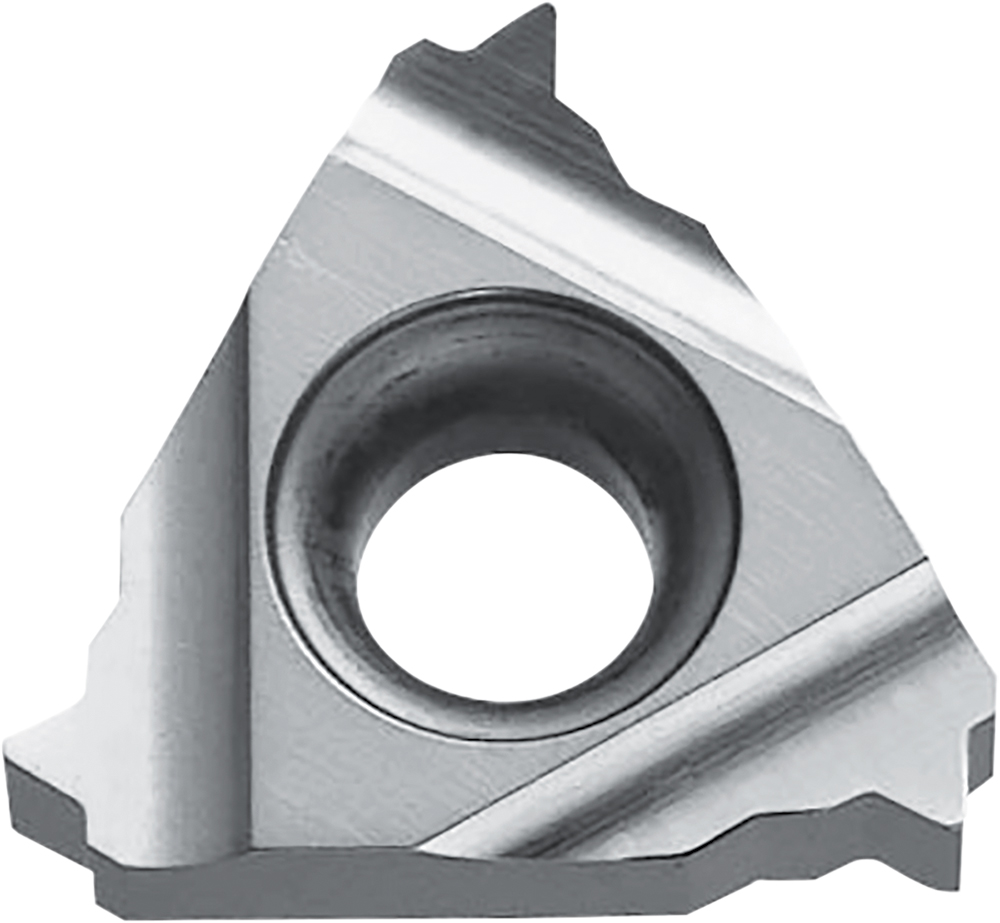

| Long Description | Kyocera 16ER 14BSPT TC60 Grade Uncoated Cermet, External, 55 Degree Full Profile, Right-Hand Threading Insert for Tapered Pipe [R(PT), (BSPT)] Threads |
|---|---|
| Material | Cermet |
| Short Description | Kyocera 16ER 14BSPT TC60 Grade Uncoated Cermet, Indexable Threading Insert |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0060 |
| UNSPSC | 23291804 |
| Thread Pitch/TPI | R(PT), (BSPT): 14 |
| Primary Workpiece Material | (P) Steel|(M) Stainless Steel |
| Thread Standard | Tapered Pipe [R(PT), (BSPT)] |
| Insert Holding Method | Screw or Clamp |
| Number of Cutting Edges | 3 |
| Insert Grade | TC60 |
| Insert Size | 16 |
| Thread Type | External |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| Application | External Threading |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| ECCN | EAR99 |
