KYOCERA Precision Tools
TSP01003
KYOCERA Precision Tools TSP01003
Specifications
| Material | Cermet |
|---|---|

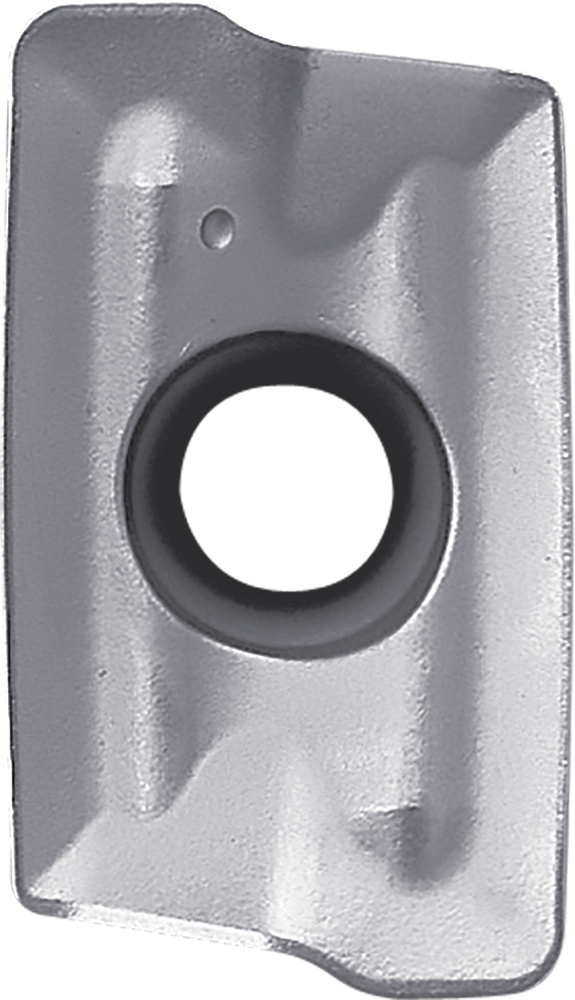

| Short Description | Kyocera BDMT 11T308ERJT TN100M Grade Uncoated Cermet, Indexable Milling Insert |
| Long Description | Kyocera BDMT 11T308ERJT TN100M Grade Uncoated Cermet, Parallelogram, Positive Rake Angle, Right-Hand Milling Insert for Finishing in (P) Carbon/Alloy Steel, (P) Mold Steel |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 2 |
| Application | Facing|Helical Milling|Shouldering|Slotting |
| Insert Size | 11T308 |
| Cutting Range | Finishing |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0060 |
| UNSPSC | 23291601 |
| Primary Workpiece Material | (P) Carbon/Alloy Steel|(P) Mold Steel |
| Insert Holding Method | Screw |
| Insert Grade | TN100M |
| Insert Shape | Parallelogram |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
