KYOCERA Precision Tools
TSR03522
KYOCERA Precision Tools TSR03522
Specifications
| Material | Cermet |
|---|---|

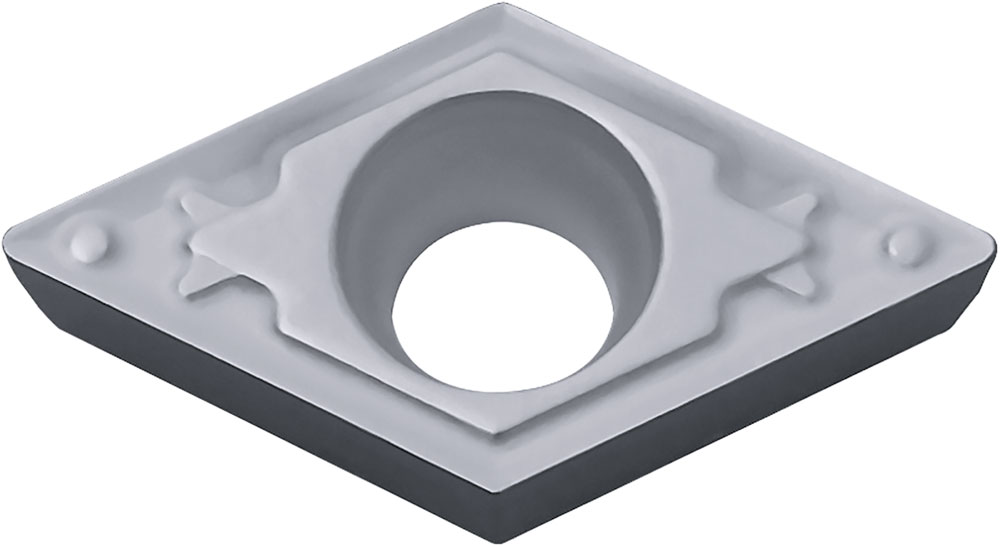

| Short Description | Kyocera DCMT 2152HQ TN620 Grade Uncoated Cermet, Indexable Turning Insert |
| Long Description | Kyocera DCMT 2152HQ TN620 Grade Uncoated Cermet, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (P) Carbon/Alloy Steel |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 2 |
| Application | Back Boring|Copying|External Turning |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Finishing-Medium |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0060 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (P) Carbon/Alloy Steel |
| Insert Grade | TN620 |
| Insert Size | 2152 |
| Insert Shape | 55 Degree Diamond |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
