KYOCERA Precision Tools
TSR17615
KYOCERA Precision Tools TSR17615
Specifications
| Material | Cermet |
|---|---|

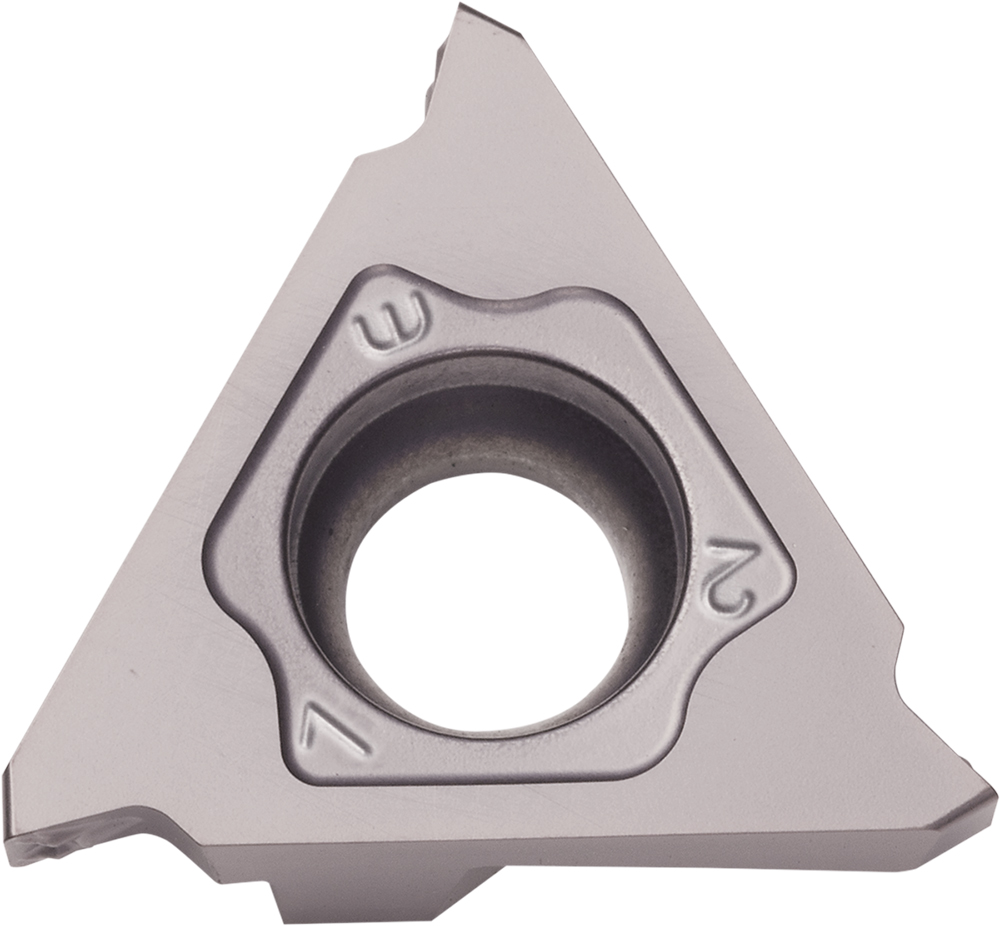

| Long Description | Kyocera GBA 43L140010GM TN620 Grade Uncoated Cermet, 1.40mm Groove Width, Left-Hand Grooving Insert for Continuous and Finishing-Medium in (P) Steel |
| Short Description | Kyocera GBA 43L140010GM TN620 Grade Uncoated Cermet, Indexable Grooving Insert |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 3 |
| Application | External Grooving |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Cutting Range | Finishing-Medium |
| Pack Height (inches) | 0.472 |
| Harmonized Code | 8209.00.0060 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (P) Steel |
| Insert Holding Method | Screw or Clamp |
| Insert Grade | TN620 |
| Insert Size | 43 |
| Pack Length (inches) | 4.331 |
| Pack Width (Inches) | 2.047 |
| ECCN | EAR99 |
