KYOCERA Precision Tools
TWE00778
KYOCERA Precision Tools TWE00778
Specifications
| Material | Carbide |
|---|---|

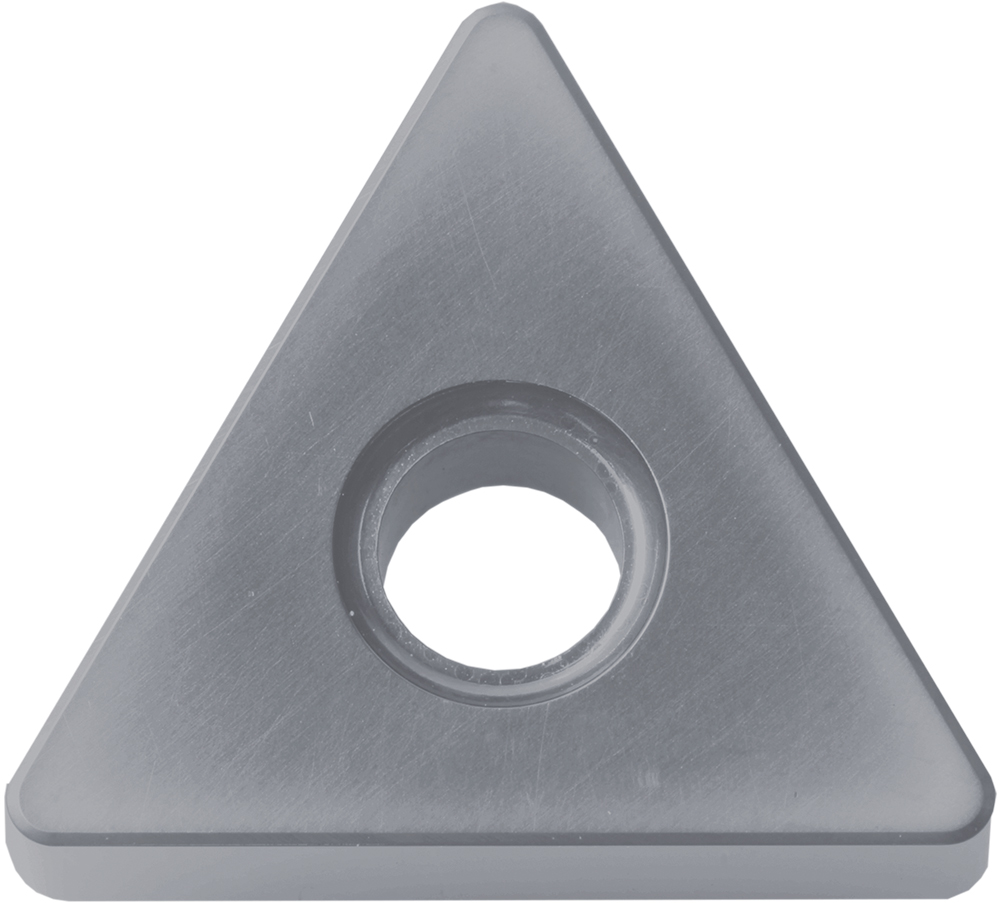

| Short Description | Kyocera TNGA 221 KW10 Grade Uncoated Carbide, Indexable Turning Insert |
| Long Description | Kyocera TNGA 221 KW10 Grade Uncoated Carbide, 0 Degree, Triangle, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Roughing in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron |
| Country of Origin | US, JAPAN, CHINA, SOUTH KOREA, OTHER |
| Coating Process Type | Uncoated |
| Number of Cutting Edges | 6 |
| Application | Boring|Chamfering|Copying|External Turning|Facing |
| Insert Holding Method | Screw or Clamp |
| Cutting Range | Roughing |
| Pack Height (inches) | 0.394 |
| Harmonized Code | 8209.00.0030 |
| UNSPSC | 23242107 |
| Primary Workpiece Material | (N) Non-Ferrous Materials|(S) Titanium Alloy |
| Insert Grade | KW10 |
| Insert Size | 221 |
| Insert Shape | 60 Degree Triangle |
| Pack Length (inches) | 4.134 |
| Pack Width (Inches) | 1.772 |
| ECCN | EAR99 |
